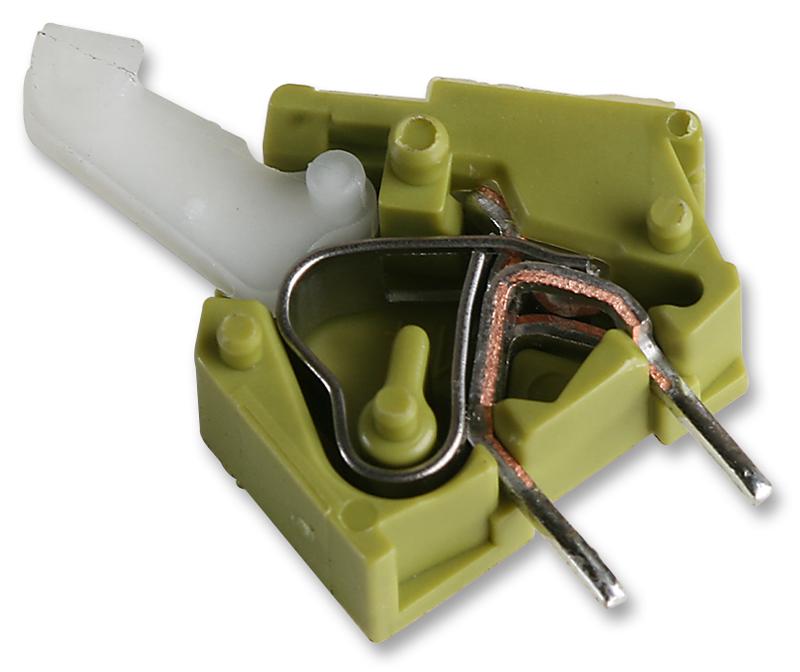

WAGO 256747 Push-Button Terminal Block
The 256-747 is a 1-pole, lightweight terminal block designed for industrial wiring, featuring push-button actuation and CAGE CLAMP® technology for tool-free, secure connections. Made with polyamide 66 insulation, it supports wire sizes from 0.08 to 2.5 mm² (28-12 AWG) and includes tin-plated electrolytic copper contacts for reliable conductivity. This terminal block operates from -60°C to 105°C, is UL94V-0 flame rated, and is ideal for in-field installations requiring quick, tool-free wiring with high current capacity up to 24A, suitable for various automation and control systems.
WAGO 256747 Push-Button Terminal Block Specifications:
- Number of poles: 1
- Pin spacing: 5/5.08 mm / 0.2 in
- Rated current: 24A
- Wire sizes supported: 0.08 to 2.5 mm² (28-12 AWG), with insulated ferrule support from 0.25 to 1.5 mm²
- Connection technology: CAGE CLAMP®
- Material: Polyamide 66 insulation, tin-plated electrolytic copper contacts, chrome-nickel-plated steel spring
- Operating temperature: -60°C to 105°C
- Flammability: UL94V-0
- Mounting type: Through-hole, right-angle
- Weight: 0.967 g
- Dimensions: Length from surface 18.2 mm, height 22.2 mm, width 17.6 mm
Buy the WAGO Series 256-747 Push-Button Terminal Block: 256747
Order the WAGO 256747 push-button terminal block online today and enhance your wiring efficiency. With feature-rich design, tool-free actuation, and high current capacity of 24A, this modular 1-pole terminal block ensures secure, reliable connections in industrial automation, control panels, and field wiring. Its compact size, solid construction, and UL94V-0 flammability rating meet industry safety standards. Ideal for quick installations and maintenance, this terminal block offers seamless integration into various control systems, making your wiring tasks faster and more reliable.
Buy WAGO 256747 now and experience unmatched reliability and performance with easy tool-free wiring for efficient industrial connections.
Frequently Asked Questions
Where can I buy WAGO 256747?
You can click on the BUY or RFQ button to purchase 256747 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 256747?
You can download the 256747 datasheet or visit the WAGO website for support.
Who is the manufacturer of 256747?
WAGO
