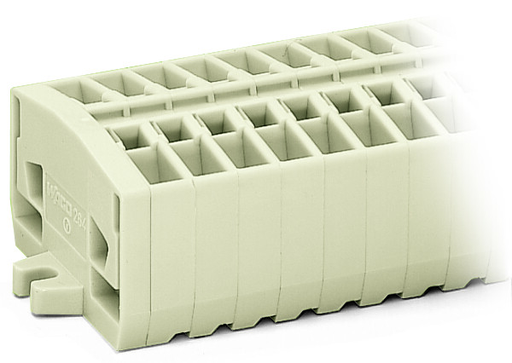

WAGO 264142 12-pole Terminal Strip
The WAGO 264-142 is a 12-pole terminal strip specifically engineered for use in Ex e II environments. This terminal strip offers a robust and reliable connection solution for various industrial applications. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring secure and efficient conductor termination. The design incorporates fixing flanges for secure mounting and is compatible with screw-based mounting methods. With a capacity of 2.5 mm², it’s suitable for a wide range of wiring needs. Its light gray polyamide (PA66) construction provides excellent insulation and durability.
WAGO 264142 12-pole Terminal Strip Specifications:
- Rated voltage EN (Ex e II): 690 V
- Rated current (Ex e II): 23 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (conductor cross-section): 12 AWG: THHN, THWN
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 12
- Total number of connection points: 24
- Total number of potentials: 12
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 88 mm / 3.465 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 6 mm / 0.236 inch
- Design: horizontal type
- Mounting type: Mounting flange
- Marking level: Center marking
- Color: light gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.938 MJ
- Weight: 47.6 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918423151
- Customs tariff number: 85369010000
