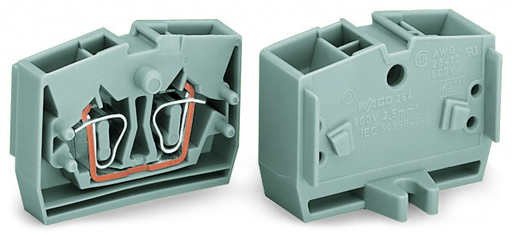

WAGO 264331 4-Conductor End Terminal Block
The WAGO 264-331 is a versatile 4-conductor end terminal block ideal for a wide range of industrial applications. Its front-entry wiring simplifies installation, while the innovative cage clamp connection ensures a robust and vibration-resistant termination. This terminal block is suitable for screw or similar mounting types and is designed to handle voltages up to 800V and currents up to 24A. It is commonly used in control cabinets, power distribution systems, and automation equipment where reliable and secure connections are essential.
WAGO 264331 4-Conductor End Terminal Block Specifications:
- Product Description: 4-Conductor End Terminal Block; Centre Marking; Front-Entry; Cage Clamp® Connection; Horizontal Type; For Screw or Similar Mounting Types
- Packing Unit: 100 pieces
- Product Group: Std Chassis Mt Blocks
- Cross Section From (mm²): 0.08
- Cross Section To (mm²): 2.5
- Cross Section From (AWG): 28
- Cross Section To (AWG): 12
- Connection Method: Cage Clamp® Connection
- Number of Strands: 2
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 6.12 g
- Color: grey
- Wiring Type: Front-Entry
- No. of Connection Points: 4
- No. of Potentials: 1
- Height: 22 mm
- Height (Inches): 0.867 in
- Width: 10 mm
- Width (Inches): 0.394 in
- Depth: 32 mm
- Depth (Inches): 1.26 in
- Strip Length From: 8 mm
- Strip Length To: 9 mm
- Strip Length (Inches): 0.33 in
- Admission Office: Various (ABS, BBJ, BV, CSA, DEMKO, DNV, GL, KEMA, KR, LR, RMR, SEMKO, UL, UR)
- Approval No.: Various (See Datasheet)
- Voltage (V): 800
- Current (A): 24
- Cross Section (mm²): 2.5
