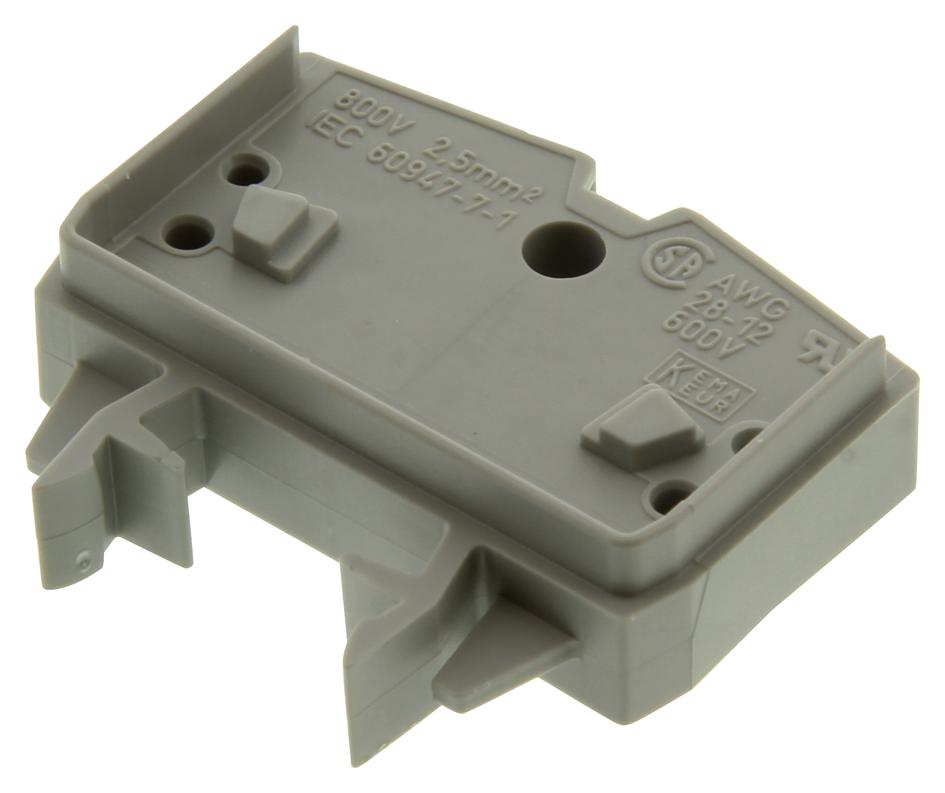

WAGO 264701 2-Conductor Miniature Terminal Block
The WAGO 264-701 is a miniature through terminal block ideal for applications requiring compact and reliable connections on DIN rails. Its front-entry design simplifies wiring, while the innovative cage clamp connection ensures a secure and vibration-resistant termination. Suitable for various industrial control and power distribution systems, this terminal block offers a robust and space-saving solution for connecting multiple conductors. It is designed to accommodate wire sizes ranging from 0.08 mm² to 2.5 mm² (28 AWG to 12 AWG) and supports a measured voltage of 800V and a current intensity of 24A.
WAGO 264701 2-Conductor Miniature Terminal Block Specifications:
- Product Description: 2-CONDUCTOR MINIATURE THROUGH TERMINAL BLOCK; CENTRE MARKING; for DIN 15 rail; FRONT-ENTRY; CAGE CLAMP®CONNECTION; HORIZONTAL TYPE
- Packing Unit: 100 pieces
- Product Group: 9 (Std Chassis Mt Blocks)
- Cross Section From mm²: 0,08 mm²
- Cross Section To mm²: 2,5 mm²
- Cross Section From AWG: 28 AWG
- Cross Section To AWG: 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 3,9 g
- Color: grey
- Wiring Type: Front-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 24,5 mm
- Height in inches: 0,96 in
- Width: 6 mm
- Width in inches: 0,236 in
- Depth: 32 mm
- Depth in inches: 1,26 in
- Strip Length From: 8 mm
- Strip Length To: 9 mm
- Strip Length in inches: 0,33 in
- Admission Office ABS: 04-HG476174-PDA
- Approval No. BV: 07436/C0
- Approval No. CCA: NL5704
- Voltage CSA [V]: 600
- Current CSA [A]: 20
- Cross Section CSA [mm²]: 26-12
- Approval No. DNV: E7569
- Approval No. GL: 17295-00HH
- Approval No. KEMA: 2079570.01
- Approval No. KR: HMB05880-EL002
- Approval No. LR: 92/20242(E5)
- Approval No. PRS: TE/1718/880590/08
- Approval No. RMR: 11130002
- Approval No. UR: E45172
