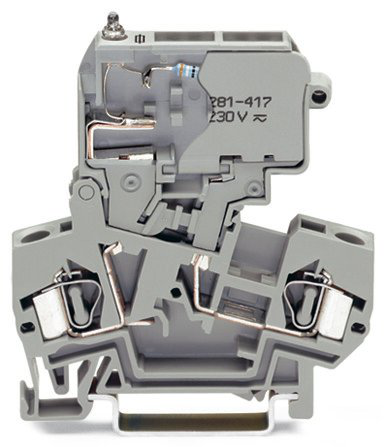

WAGO 281611281417 2-conductor fuse terminal block
The WAGO 281-611/281-417 is a versatile 2-conductor fuse terminal block ideal for industrial applications requiring fuse protection. It's designed for mounting on DIN rails (35 x 15 and 35 x 7.5) and accommodates miniature 5 x 20 mm fuses. The integrated pivoting fuse holder provides visual blown fuse indication via a neon lamp, enhancing safety and maintenance. The CAGE CLAMP® spring pressure connection technology ensures reliable termination of conductors, and it's compatible with both copper and aluminum conductors (with the use of WAGO “Alu-Plus” Contact Paste). This terminal block is suitable for a wide range of electrical circuits and control panels where fuse protection is essential.
WAGO 281611281417 2-conductor fuse terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 10 A
- Operation status indicator: 230 V
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 60 mm / 2.362 inch
- Depth: 60 mm / 2.362 inch
- Design: angled
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.333 MJ
- Weight: 17.7 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4045454871437
- Customs Tariff No.: 85369095990
- Rated voltage: 800 V
- Rated impulse voltage: 8 kV
- Fuse size: 5 x 20 mm
Buy the 281-611/281-417 WAGO 2-conductor fuse terminal block | myMectronic
Purchase the WAGO 281-611/281-417 fuse terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281611281417?
You can click on the BUY or RFQ button to purchase 281611281417 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281611281417?
You can download the 281611281417 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281611281417?
WAGO
