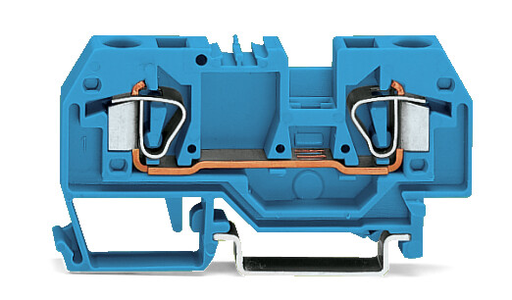

WAGO 282904 2-Conductor Terminal Block
The WAGO 282-904 is a robust and reliable 2-conductor through terminal block specifically designed for rail-mounted applications. Its cage clamp connection ensures a secure and vibration-resistant termination of conductors, making it ideal for industrial environments. Suitable for Ex I applications, this terminal block provides a safe and efficient connection solution for various electrical systems. The front-entry wiring simplifies installation and maintenance, while the center marking aids in identification and organization. It is commonly used in control cabinets, power distribution systems, and other industrial automation setups.
WAGO 282904 2-Conductor Terminal Block Specifications:
- Product Description: 2-CONDUCTOR THROUGH TERMINAL BLOCK; CENTRE MARKING; SUITABLE FOR EX I APPLICATIONS; for DIN 35 rail; FRONT-ENTRY; CAGE CLAMP®CONNECTION
- Packing Unit: 50 pieces
- Cross Section From mm²: 0,2
- Cross Section To mm²: 6
- Cross Section From AWG: 24
- Cross Section To AWG: 10
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 41 A
- Weight: 16,046 g
- Color: blue
- Wiring Type: Front-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 32,5 mm
- Height in inches: 1,28 in
- Width: 8 mm
- Width in inches: 0,315 in
- Depth: 74,5 mm
- Depth in inches: 2,93 in
- Strip Length From: 12 mm
- Strip Length To: 13 mm
- Strip Length in inches: 0,49 in
- Admission Office ABS: 05-HG476175/1-PDA
- Approval Voltage ABS: 800 V
- Approval Current ABS: 32 A
- Approval Cross Section ABS: 6,0 mm²
- Admission Office BV: 07436/Co
- Approval Voltage BV: 800 V
- Approval Current BV: 32 A
- Approval Cross Section BV: 6,0 mm²
- Admission Office CCA: NL5448
- Approval Voltage CCA: 800 V
- Approval Current CCA: 30 A
- Approval Cross Section CCA: 6 mm²
- Admission Office CSA: 154112-1505033
- Approval Voltage CSA: 600 V
- Approval Current CSA: 40 A
- Approval Cross Section CSA: 24-10 AWG
- Admission Office DNV: E7570
- Approval Voltage DNV: 800 V
- Approval Current DNV: 41 A
- Approval Cross Section DNV: 6,0 mm²
- Admission Office GL: 17295-00HH
- Approval Voltage GL: 800 V
- Approval Current GL: 41 A
- Approval Cross Section GL: 6 mm²
- Admission Office KEMA: 2036066.01
- Approval Voltage KEMA: 800 V
- Approval Current KEMA: 6 A
- Approval Cross Section KEMA: 6 mm²
- Admission Office LR: 91/20112(E5)
- Approval Voltage LR: 800 V
- Approval Current LR: 32 A
- Approval Cross Section LR: 6,0 mm²
- Admission Office PRS: TE/1718/880590/08
- Approval Voltage PRS: 800 V
- Approval Current PRS: 30 A
- Approval Cross Section PRS: 6 mm²
- Admission Office RMR: 11130002
- Approval Voltage RMR: 800 V
- Approval Current RMR: 32 A
- Approval Cross Section RMR: 6,0 mm²
- Admission Office UR: E45172
- Approval Voltage UR: 600 V
- Approval Current UR: 30 A
- Approval Cross Section UR: 24-10 AWG
