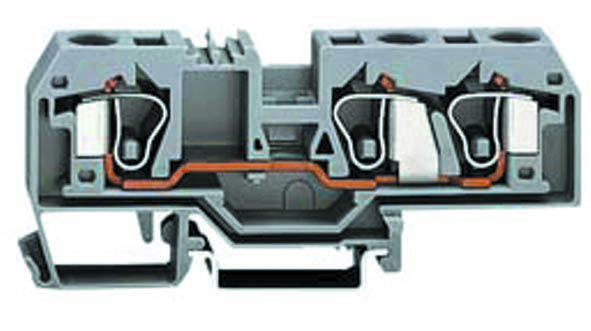

WAGO 284681 3-Conductor Terminal Block
The WAGO 284-681 is a rail-mounted terminal block designed for secure and efficient power distribution in industrial environments. Featuring a 3-conductor design and a cage clamp connection, it ensures reliable termination of wires. The front-entry wiring simplifies installation and maintenance. This terminal block is ideal for applications in control cabinets, machinery, and automation systems where robust and space-saving connectivity is required. It is suitable for a wide range of applications, including power distribution, signal transmission, and equipment grounding.
WAGO 284681 3-Conductor Terminal Block Specifications:
- Product Group: Rail Mounted Terminal Blocks
- Cross Section From (mm²): 0.2
- Cross Section To (mm²): 10
- Cross Section From (AWG): 24
- Cross Section To (AWG): 8
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 800
- Measured Shock Voltage: 8
- Pollution Degree: 3
- Current Intensity EN: 57
- Weight: 31.99
- Color: grey
- Wiring Type: Front-entry
- No. of Connection Points: 3
- No. of Potentials: 1
- Height: 35
- Height (in): 1.38
- Width: 10
- Width (in): 0.394
- Depth: 97.5
- Depth (in): 3.84
- Strip Length From (mm): 12
- Strip Length To (mm): 13
- Strip Length (in): 0.49
- Admission Office: ABS, BBJ, CCA, CSA, Dep.MaE, DNV, GL, KEMA, KR, LR, PRS, RMR, UL, UR
- Approval No.: 05-HG476175/1-PDA, B/12/700/03, NL5918, 154112-1536073, CS4869N, E7570, 17295-00HH, 2085859.13, HMB05880-EL001, 91/20112(E5), TE/1718/880590/08, 11130002, E45172, E45172
- Voltage (V): 800
- Current (A): 57
- Cross Section (mm²): 10
Buy the 284-681 WAGO 3-Conductor Terminal Block | myMectronic
Purchase the genuine WAGO 284-681 terminal block securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 284681?
You can click on the BUY or RFQ button to purchase 284681 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 284681?
You can download the 284681 datasheet or visit the WAGO website for support.
Who is the manufacturer of 284681?
WAGO
