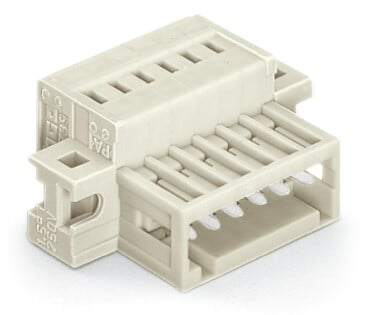

WAGO 734306019000 6-pole Male Connector
The WAGO 734-306/019-000 is a robust 6-pole male connector ideal for diverse industrial applications. Its design incorporates fixing flanges for secure mounting, a 3.5mm pin spacing for efficient layout, and a 100% anti-mismatching feature ensuring reliable connections. Compatible with various conductor types and offering a wide range of approvals, this connector simplifies wiring and enhances system reliability. It's suitable for applications requiring secure, coded connections in industrial automation, control panels, and power distribution systems.
WAGO 734306019000 6-pole Male Connector Specifications:
- No. of Poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Color: light gray
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 160
- Rated surge voltage (1) [kV]: 2.5
- Nominal current [A]: 10
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Rated voltage EN (2) [V]: 320
- Bemessungsstossspannung (2) [kV]: 2.5
- Nominal current (2) [A]: 10
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 160
- Rated surge voltage (3) [kV]: 2.5
- Nominal current (3) [A]: 10
- Connection technology (1): CAGE CLAMP®
- Conductor type (1): solid
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 1.5
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 14
- Conductor type (2): fine-stranded
- Cross section from (2) [mm²]: 0.08
- Cross section up to (2) [mm²]: 1.5
- Conductor type (3): fine-stranded (with insulated ferrule)
- Cross section from (3) [mm²]: 0.25
- Cross section up to (3) [mm²]: 1.5
- Conductor type (4): fine-stranded (with uninsulated ferrule)
- Cross section from (4) [mm²]: 0.25
- Cross section up to (4) [mm²]: 1.5
- Stripped length from (1) [mm]: 6
- Stripped length up to (1) [mm]: 7
- Strip length from [inch] [in]: 0.24
- Strip length up to [inch] [in]: 0.28
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature [C]: -60
- Upper temperature limit [C]: 100
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load [MJ]: 0.124
- Weight [g]: 6
- Width [mm]: 35.8
- Width [in]: 1.409
- Height [mm]: 13.4
- Height [in]: 0.528
- Length [mm]: 22.3
- Length [in]: 0.878
- Pin spacing from [mm]: 3.5
- Pin spacing up to [mm]: 3.5
- Pin spacing from [in]: 0.138
- Pin spacing up to [in]: 0.14
