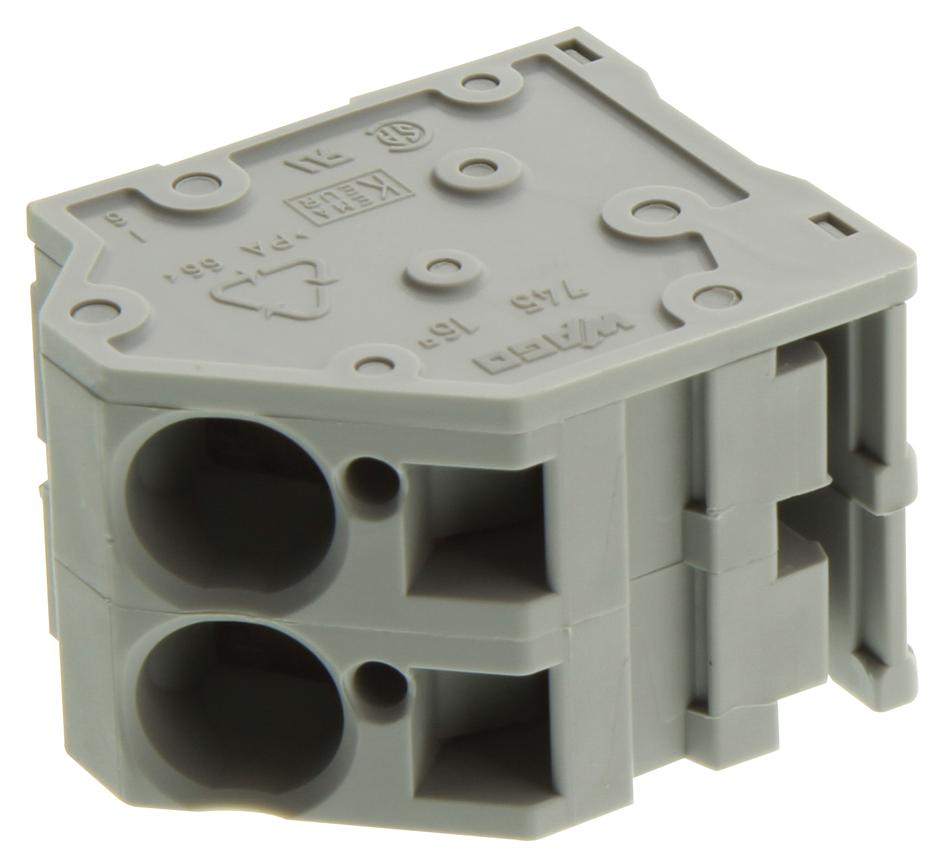

WAGO 745502006000 Industrial terminal strip
The 745-502/006-000 is a versatile two-pole terminal strip designed for industrial wiring, featuring jumper slots, four solder pins per pole for high mechanical stability, and an integrated testing tap. Constructed with tin-plated copper alloy contacts and a durable polyamide 66 insulator, it offers excellent voltage and current handling capabilities, including UL approval up to 600V and rated currents of 76A. The strip includes comb-style jumper bars for potential distribution, marker slots for easy identification, and an option for custom coloring. Suitable for complex wiring systems requiring reliable, modular connections and advanced potential control.
WAGO 745502006000 Industrial terminal strip Specifications:
- Rated voltage: 320 V (EN) / 630 V (EN)
- Rated surge voltage: 4 kV
- Nominal current: 76 A
- Number of potentials: 2
- Pin spacing: 10 mm / 0.394 in
- Material: Polyamide 66 insulator, electrolytic copper contacts, chrome-nickel spring steel spring
- Solder pin length: 6.5 mm
- Solder pin width A: 1.2 mm
- Solder pin width B: 1.6 mm
- Width: 21.7 mm / 0.854 in
- Height: 27 mm / 1.063 in
- Fire load: 0.291
- Flammability: UL 94 V-0
- Overvoltage categories: EN 1, 2, 3
- Pollution degree: 2-3
- Temperature range: -60°C to +105°C
- Clamping: CAGE CLAMP®
- Insulation: Polyamide 66
- Certification: UL, EN approvals
Buy the WAGO Series 745-502/006-000 Terminal Strip: 745502006000
Purchase the WAGO terminal strip online today for dependable, modular wiring solutions tailored for industrial applications. This two-pole strip features jumper slots, four solder pins per pole for durability, and integrated testing taps for efficient maintenance. Its polyamide insulator and copper contacts ensure high current handling and voltage ratings, suitable for complex electrical systems. Complete with customizable options and UL approval, this terminal strip guarantees secure connections, simplified wiring, and enhanced potential control. Order now for quick delivery and optimal performance in your electrical projects.
Buy WAGO Series 745-502/006-000 terminal strip now and experience unmatched reliability and performance for industrial wiring and potential distribution.
Frequently Asked Questions
Where can I buy WAGO 745502006000?
You can click on the BUY or RFQ button to purchase 745502006000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 745502006000?
You can download the 745502006000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 745502006000?
WAGO
