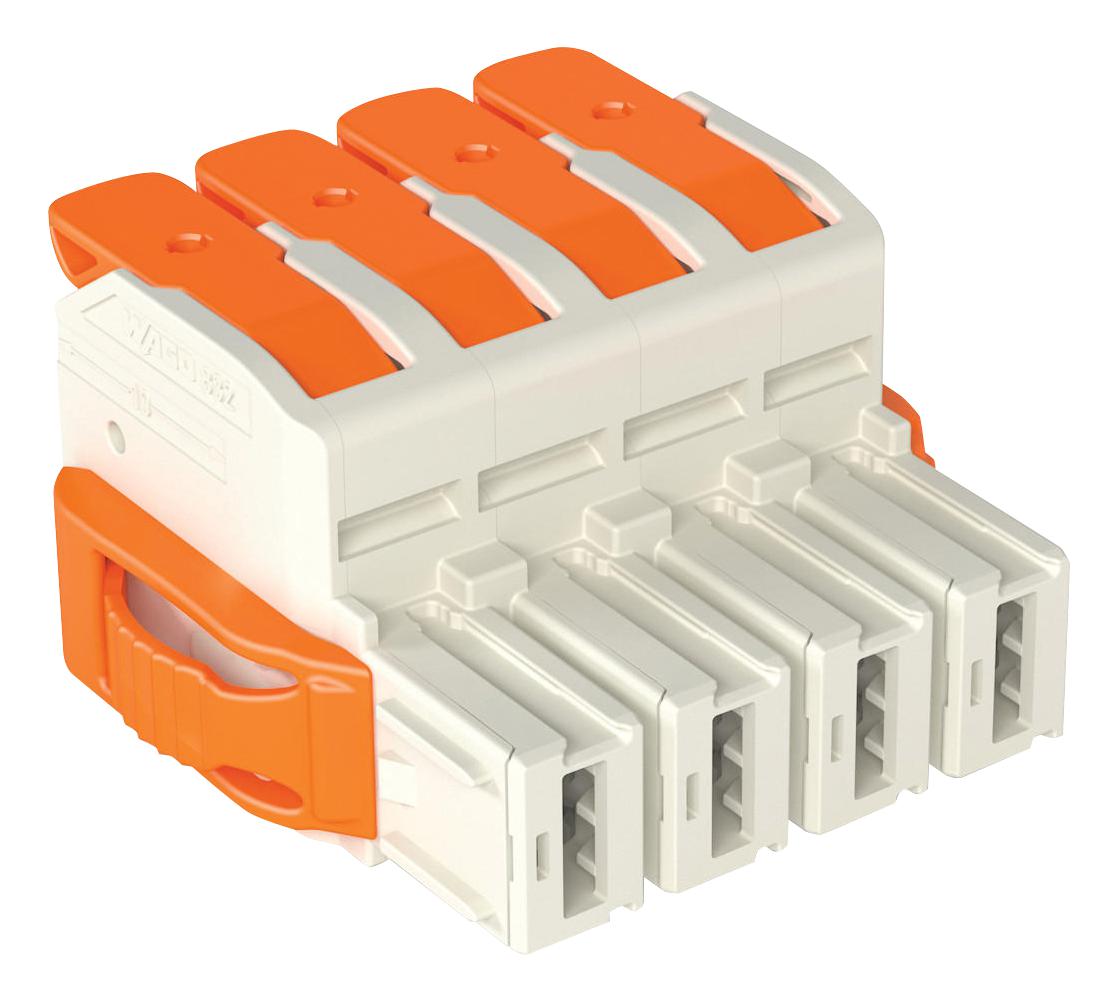

WAGO 8321102 Power Connector
WAGO's PCB terminal blocks and pluggable connectors are designed for power electronics, offering secure, tool-free, and space-saving connections for high-density PCB applications. Featuring Push-in CAGE CLAMP® technology, these connectors accommodate various conductor types, including solid and ferruled, with options for horizontal or vertical termination. The MCS MAXI 16 pluggable connector with lever operation simplifies wiring by providing intuitive, tool-free handling and including features like internal coding for easy recoding. All products are rated up to 1000 V and designed for reliable, maintenance-free electrical connections in demanding environments.
WAGO 8321102 Power Connector Specifications:
- Connection Technology: Push-in CAGE CLAMP®
- Rated Voltage: 1000 V
- Conductor Cross-Section: 4 mm?, 6 mm?, 16 mm?, up to 25 mm? size in pluggable connectors
- Current Capacity: Up to 66 A depending on series
- Conductor Types: Solid, ferruled, fine-stranded conductors
- Operation: Tool-free with lever actuation, or tool-actuated for some series
- Mounting Type: Straight or angled configurations
- Applicable Standards: IEC/EN 60664-1, UL 61800-5-1 (details upon request)
- Product Series: 2616, 2624, 2626, 2636, 2604, 2606 Series
- Design Features: Locking levers, optional locking and coding, space-saving connection
- Application: Power supplies, frequency inverters, servo drives, device connection
- ULCSA Approval: Pending
Buy the WAGO Series 2616 Power Electronics: PCB Terminal Block 8321102
Order the WAGO 8321102 power connector online today to ensure reliable, space-efficient wiring for high-performance power electronics. Featuring push-in CAGE CLAMP® technology and ergonomic levers, this connector simplifies installation for various conductors, including solid and ferruled types. It is rated for up to 1000 V and 66 A, suitable for demanding environments like power supplies and inverters. Experience quick, tool-free wiring with secure locking features and easy recoding options—designed for precise, long-lasting electrical connections in your applications.
Get WAGO 8321102 today—built for secure, space-saving power connections with intuitive, tool-free operation.
