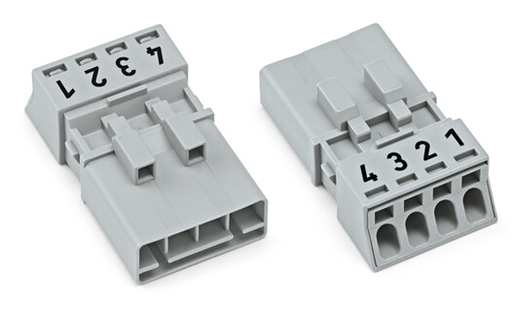

WAGO 890254 4-pole Terminal Block Connector
The WAGO 890-254 plug connector is designed for efficient and secure power distribution in a variety of industrial settings. Its push-in CAGE CLAMP® spring pressure connection technology simplifies wiring, allowing for quick and reliable connections of solid conductors. The connector's compact design and 4.4mm pole spacing optimize space utilization in control cabinets and distribution panels. It is protected against mismating and offers clear marking and color-coding options for easy identification. Complies with IP40 standards when mated with a strain relief housing, making it suitable for easily accessible areas. The WAGO 890-254 is a robust and reliable solution for connecting power and signal lines.
WAGO 890254 4-pole Terminal Block Connector Specifications:
- Color: gray
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 16 A
- Rated Current (3-pole load): 13 A
- Rated Current (4-pole load): 10 A
- Connection Technology: Push-in CAGE CLAMP®
- Nominal Cross-Section: 1.5 mm²
- Solid Conductor Size: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid Conductor (push-in): 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded Conductor Size: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-Stranded Conductor Size: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-Stranded Conductor (ferrule): 0.25 … 0.75 mm² / 22 … 20 AWG
- Strip Length: 9 mm / 0.35 inch
- Pole No.: 4
- Total Number of Connection Points: 4
- Total Number of Potentials: 4
- Conductor Entry Direction: 0 °
- Pin Spacing: 4.4 mm / 0.173 inch
- Width: 19.2 mm / 0.756 inch
- Height: 11.7 mm / 0.461 inch
- Depth: 34.1 mm / 1.343 inch
- Coding: B
- Mating Force: approx. 20 … 70 N
- Retention Force (Locked): > 80 N
- Unmating Force (Unlocked): approx. 20 … 70 N
- Number of Mating Cycles: 200 (without resistive load)
- Marking: 1 2 3 4
- Protection Type: IP20
- Protection Type (with housing): IP40
- Potential Marking: 1 2 3 4
- Insulation Material: Polyamide 66 (PA66)
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Copper or copper alloy (surface-treated)
- Fire Load: 0.099 MJ
- Processing Temperature: -5 … +40 °C
- Continuous Operating Temperature: -35 … +85 °C
- Product Group: 20 (WINSTA)
- Packaging Type: BOX
- Country of Origin: PL
- GTIN: 4055143523660
- Customs Tariff Number: 85366990990
- Contact Resistance: approx. 1 mΩ
- Contact Transition Plug/Socket Resistance: approx. 0.25 mΩ
