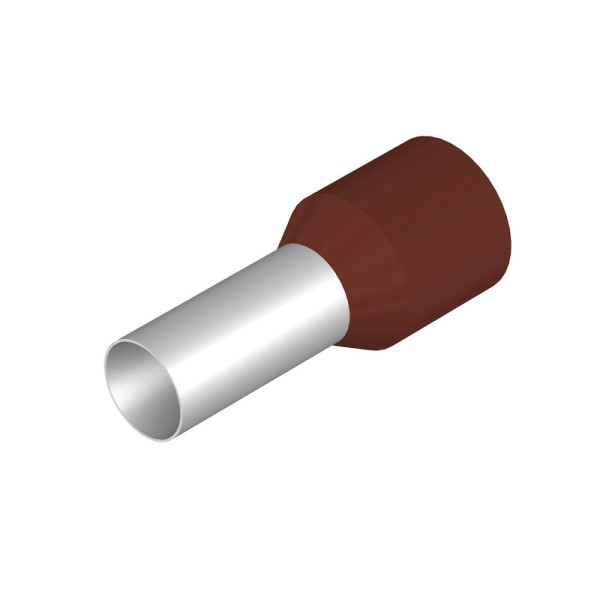

WEIDMULLER 0317000000 Insulated Wire-end Ferrule
The Weidmuller H25,0/30 BR insulated wire-end ferrule is a crucial component in electrical systems, ensuring a secure and reliable connection between wires and terminals. This ferrule, identified by part number 0317000000, is designed for conductor cross-sections up to AWG 3 and features a distinctive brown color code for easy identification. Its insulated construction provides added protection and enhances overall system safety. The ferrule's dimensions, including a collar diameter of 11.2 mm and a contact surface length of 16 mm, are optimized for efficient and robust connections in various industrial applications, from power distribution to automation systems. It is designed to meet the demands of modern electrical engineering, contributing to the reliability and longevity of connected equipment.
WEIDMULLER 0317000000 Insulated Wire-end Ferrule Specifications:
- Order No.: 0317000000
- Version: Wire-end ferrule, insulated, 18 mm, 16 mm, brown
- GTIN(EAN): 4008190158231
- Quantity: 50pc(s)
- Packaging: loose
- Net weight: 1.12 g
- Collar diameter(D2): 11.2 mm
- Conductor cross-section: 25 mm²
- Contact surface length(L2): 16 mm
- Metal sleeve thickness(S1): 0.2 mm
- Plastic collar thickness(S2): 0.4 mm
- Wire connection cross section AWG, max.: AWG 3
- Contact surface diameter(D1): 7.3 mm
- L1: 30 mm
- Military designation: T 20A 030 A
- Strippinglength: 18 mm
- ETIM 6.0: EC000005
- eClass 9.0: 27-40-02-01
- eClass 10.0: 27-40-02-01
- ETIM 7.0: EC000005
- eClass 9.1: 27-40-02-01
- UNSPSC: 31-16-31-02
