WEIDMULLER 1002110000 4-Pole Push-In Female Connector
The OMNIMATE Signal series BL/SL 5.08 female connector features a compact PUSH IN connection system for easy, tool-free wiring. Designed for versatile applications, it supports 4 flange variations, multiple wire outlet directions, and a rated voltage of 400 V with 24 A current capacity. Constructed from durable PBT with a tinned copper contact surface, this connector ensures reliable, finger-safe connections compliant with DIN VDE standards. It supports a wide temperature range from -60°C to 100°C and is suitable for solid and flexible wires from AWG 26 to AWG 12, making it ideal for various industrial automation and control applications.
WEIDMULLER 1002110000 4-Pole Push-In Female Connector Specifications:
- Pitch: 5.08 mm (0.2 inches)
- Number of poles: 4
- Rated voltage: IEC 400 V / UL 300 V
- Rated current: IEC 24 A / UL 18.5 A
- Clamping range: 0.13 mm² to 3.31 mm² (AWG 26 to AWG 12)
- Wire connection method: Push-in spring connection
- Insulating material: PBT, orange color (similar to RAL 2000)
- Contact material: Copper alloy, tinned surface
- Temperature range: -60°C to 100°C (operation), -30°C to 100°C (installation)
- Touch-safe protection: IP20, DIN VDE compliant
- Flame rating: UL 94 V-0
- Number of plugging cycles: 25
- Max. tightening torque: 0.2 Nm
- Withdrawal force per pole: 8N
- Packaging: Box
- Conforms to IEC 60664-1, IEC 61984, CSA, UL standards
- Approvals: CE, RoHS compliant

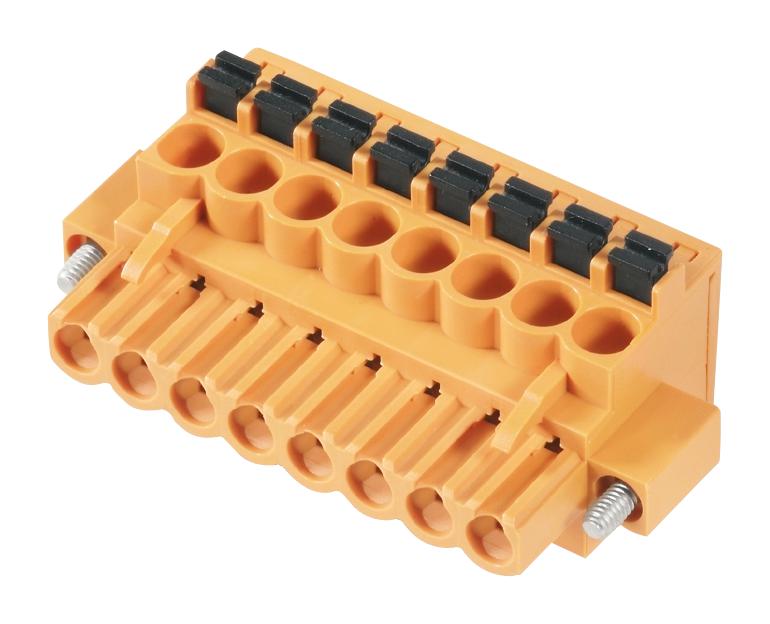

Buy the Buy Weidmueller Signal Series BL/SL 5.08 Part Number 1002110000 Online
Experience seamless wiring with the Weidmueller Signal Series BL/SL 5.08 female connector featuring push-in technology for fast, tool-free connections. Its robust construction and versatile flange options make it suitable for industrial automation, control systems, and wiring applications. Rated at IEC 400 V and 24 A, it ensures dependable performance over a wide temperature range. The connector’s durable PBT insulation, tinned copper contacts, and IP20 finger-safe design provide safety and longevity. Easily combine with compatible parts for optimized system integration in machinery, control panels, or automation networks.
Order your Weidmueller Series BLF 5.08HC/04/90F female connector today and enjoy reliable, easy-to-install wiring for industrial automation projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1002110000?
You can click on the BUY or RFQ button to purchase 1002110000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1002110000?
You can download the 1002110000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1002110000?
WEIDMULLER
