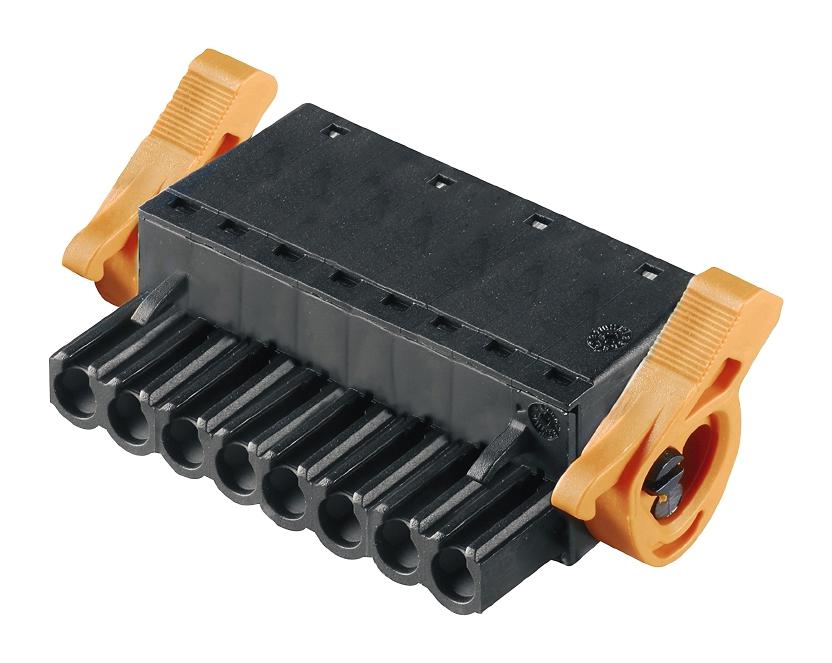

WEIDMULLER 1014180000 Industrial Connector
The Weidmüller BLF 5.08HC push-in connector is an easy-to-use, compact field connection device designed for reliable wiring in automation and industrial control applications. It features a spring push-in system that allows tool-free, secure wire connections with a clamping range up to 3.31 mm. Suitable for control panels, machinery, and industrial systems, its high vibration resistance and durable contact surfaces ensure long-lasting performance under harsh conditions. The connector's GPIO-rated specifications include 400 V / 24 A capacity, with a high current rating suitable for various automation tasks, making it a versatile choice for engineers and technicians.
WEIDMULLER 1014180000 Industrial Connector Specifications:
- Width: 50.46 mm
- Height: 14.3 mm
- Depth: 29.6 mm
- Net weight: 17.778 g
- Number of poles: 8
- Pitch: 5.08 mm (0.2 inch)
- Conductor outlet direction: 180°
- Rated voltage: 400 V
- Rated current: 24 A
- Clamping range: 0.13 mm² to 3.31 mm²
- Wire cross-section: AWG 26 to AWG 12
- Material: PBT, contact surface tinned copper
- Flammability rating: UL 94V-0
- Protection class: IP 20
- Temperature range: -30°C to 100°C
- Number of wiring cycles: 25
Buy the Buy Weidmüller BLF 5.08HC Part Number 1014180000 Online
Order the Weidmüller BLF 5.08HC connector online now to enjoy reliable, tool-free wiring with high vibration resistance, durable contact surfaces, and compact design ideal for automation and industrial machinery. Its high voltage and current ratings, combined with a wide clamping range, ensure secure connections even in harsh environments. Simplify your wiring process, improve system uptime, and benefit from long-lasting, quality connections by purchasing this versatile connector directly from authorized distributors online. Perfect for control panels, automation systems, and industrial control components.
Get Weidmüller BLF 5.08HC today—built for precision and long-lasting durability in industrial wiring and automation systems.
