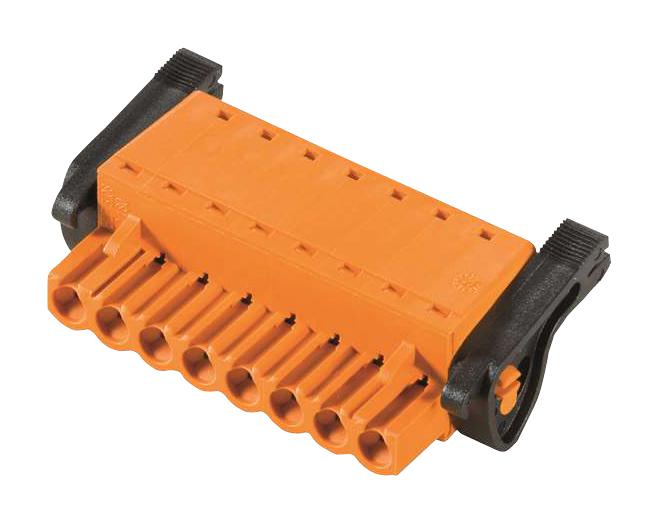

WEIDMULLER 1014450000 Signal Connector
The Weidmüller OMNIMATE Signal series BL/SL 5.08 offers a compact, reliable push-in female connector with 6.08 mm pitch and 9 poles, designed for easy, tool-free wiring. Featuring high current capacity and versatile outlet directions, it includes flange variations and a patented latch for secure locking. Rated for up to 400V and 24A, with a clamping range up to 3.31 mm, it suits industrial automation, control systems, and wiring applications. Made from insulating PBT, with tinned CuSn contacts, it ensures durability and safety in electrical connections.
WEIDMULLER 1014450000 Signal Connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 9
- Rated voltage: 400 V (IEC), 300 V (UL, CSA)
- Rated current: 24 A (IEC), 18.5 A (UL), 10 A (CSA)
- Clamping range: 0.13 mm to 3.31 mm
- Wire cross-section: AWG 26 to AWG 12
- Contact material: Copper Tin-plated
- Body material: PBT (Orange, similar to RAL 2000)
- Protection class: IP 20
- Temperature range: -30°C to 100°C
- Push-in connection method
- Long-term contact resistance: 4.50 mΩ
- Maximum wire stripping length: 10 mm
- Locking: Patented latch
- Dimensions: 40.64 mm length, pitch in inches 0.2
Buy the Weidmueller Series BL/SL 5.08 Signal Connector: 1014450000
Order the Weidmueller signal connector online today to experience dependable, easy-to-install wiring solutions for industrial automation and control systems. Featuring a compact design, push-in connection, high current capacity up to 24A, and rated for voltages up to 400V, this connector ensures safe, durable connections. Suitable for various wiring configurations, it is crafted from high-quality insulating PBT with tinned CuSn contacts for longevity. Perfect for control panels, automation equipment, and electrical installations, enabling efficient and secure connections with minimal effort.
Get Weidmueller BLF 5.08HC/09/180LR SN OR BX today—built for reliable, secure wiring with easy push-in connection and high current capacity.
