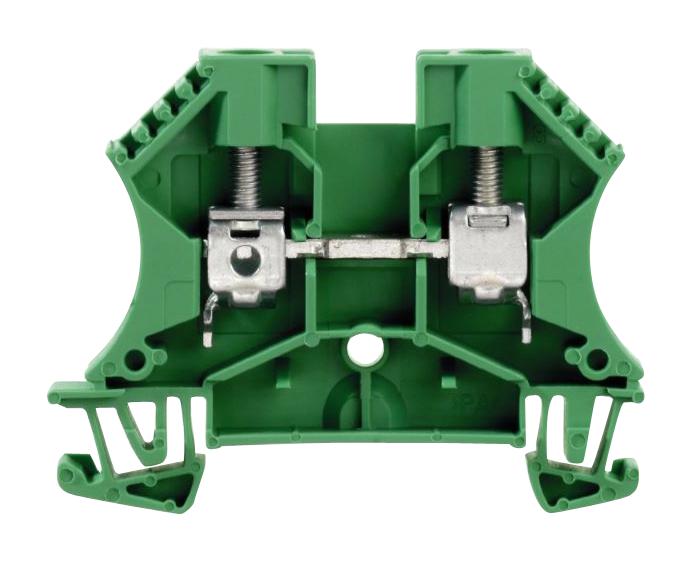

WEIDMULLER 1020290000 Feed-through Terminal Block

WEIDMULLER 1020290000 Feed-through Terminal Block Specifications:

• Type: Feed-through terminal
• Version: Screw connection, 6 mm², 800 V, 41 A, green
• Order No.: 1020290000
• GTIN(EAN): 4008190861292
• Quantity: 100 pc(s).
• Width: 7.9 mm
• Height: 60 mm
• Depth: 46.5 mm
• Depth including DIN rail: 47 mm
• Net weight: 13.69 g
• Width (inches): 0.311 inch
• Height (inches): 2.362 inch
• Depth (inches): 1.831 inch
• Weight: 14.8g
• Operating temperature range: For operating temperature see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Storage temperature min: 10 °C
• Continuous operating temp. min: -60 °C
• Storage temperature max: 40 °C
• Continuous operating temp. max: 130 °C
• Material: Wemid
• UL 94 flammability rating: V-0
• Colour: green
• Certificate No.(ATEX): DEMKO14ATEX1338U
• Max. voltage (ATEX): 690 V
• Wire cross section max. (ATEX): 6 mm²
• Current (IECEX): 41 A
• Ex 2014/34/EU label: II 2 G D
• Certificate No.(IECEX): IECEXULD14.0005U
• Current (ATEX): 41 A
• Max. voltage (IECEX): 690 V
• Wire cross section max. (IECEX): 6 mm²
• Marking EN 60079-7: Ex eb II C Gb
• Number of potentials: 1
• Number of clamping points per level: 2
• Levels cross-connected internally: No
• Rail: TS 35
• PE function: No
• End cover plate required: Yes
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm²
• Wire cross-section, finely stranded, two clampable wires, max.: 2.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 2.5 mm²
• Explosion-tested version: Yes
• Number of similar terminals: 1
• Type of mounting: Snap-on
• Rated cross-section: 6 mm²
• Rated current: 41 A
• Standards: IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 1.31 W
• Pollution severity: 3
• Rated voltage: 800 V
• Current at maximum wires: 57 A
• Volume resistance according to IEC 60947-7-x: 0.78 mΩ
• Rated impulse withstand voltage: 8 kV
• Certificate No.(CSA): 200039-1057876
• Voltage size C(CSA): 600 V
• Wire cross section min. (CSA): 22 AWG
• Current size C(CSA): 50 A
• Conductor size Factorywiringmin.(UR): 22 AWG
• Conductor size Field wiringmin.(UR): 22 AWG
• Voltage size C (UR): 600 V
• Conductor size Factorywiringmax.(UR): 8 AWG
• Conductor size Field wiringmax.(UR): 8 AWG
• Blade size: 0.8 x 4.0 mm
• Clamping range, min.: 0.22 mm²
• Connection cross-section, stranded, max.: 10 mm²
• Tightening torque, max.: 1.6 Nm
• Twin wire-end ferrules, min.: 0.5 mm²
• Wire connection cross section AWG, max.: AWG 8
• Wire connection cross-section, finely stranded, max.: 10 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 10 mm²
• Clamping range, max.: 10 mm²
• Clampingscrew: M 3.5
• Connection cross-section, stranded, min.: 1.5 mm²
• Gauge to IEC 60947-1: A5
• Stripping length: 12 mm
• Tightening torque, min.: 0.8 Nm
• Twin wire-end ferrules, max.: 4 mm²
• Type of connection: Screw connection
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
