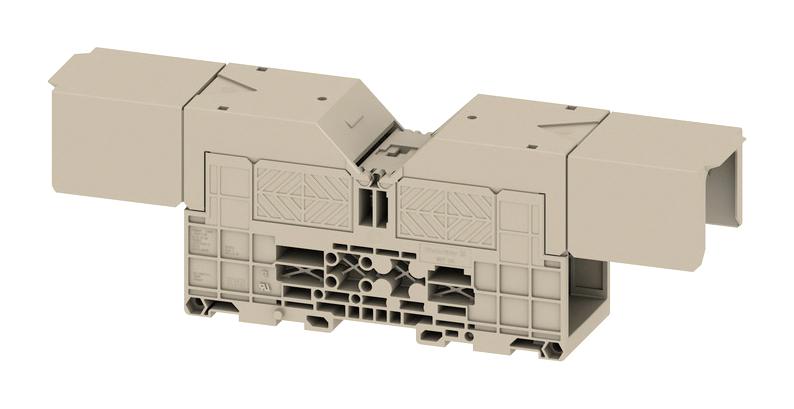

WEIDMULLER 1029600000 Bolt Terminal
The WFF 185/AH bolt-type screw terminal is a robust, high-current connection component designed for harsh environments. It features a threaded stud connection, rated for a maximum voltage of 1000 V and current of 353A. Made from durable Wemid material with UL 94 V-0 flammability rating, it supports a rated cross-section of 185 mm² and can handle wire sizes from 8 to 500 AWG. The terminal measures 55mm in width, 163mm in height, and 89.5mm in depth, with an operating temperature range of -25°C to 55°C, making it suitable for industrial power systems.
WEIDMULLER 1029600000 Bolt Terminal Specifications:
- Rated cross-section: 185 mm²
- Rated voltage: 1000 V
- Rated current: 353 A
- Maximum wire size: 8-500 AWG
- Material: Wemid with UL 94 V-0 flammability rating
- Dimensions: Width 55mm, Height 163mm, Depth 89.5mm
- Temperature range: -25°C to 55°C
- Tightening torque: Min. 14 Nm, Max. 31 Nm
- Number of clamping points per level: 2
- Mounting: Snap-on on TS 35 rail
- Explosion-tested version, IECEx and ATEX certified
- Certifications: IECEx, ATEX, CSA
- Supported for high current and voltage, suitable for industrial and power distribution applications
Buy the Buy Weidmueller Bolt-Type Screw Terminal Part Number 1029600000 Online
Order the Weidmueller bolt-type screw terminal WFF 185/AH online for reliable, high-current connections in harsh environments. Engineered with a threaded stud and rated for 185 mm², 1000 V, and 353A, it guarantees safety and durability. Made from flame-retardant Wemid material, it is suitable for power distribution and industrial projects. Easy snap-on mounting ensures quick installation, while IECEx and ATEX certifications validate its safety standards. Ensure your systems are efficient and compliant—purchase the WFF 185/AH today for superior performance and reliability.
Get Weidmueller WFF 185/AH today—built for high-current power connections and durable industrial applications.
Frequently Asked Questions
Where can I buy WEIDMULLER 1029600000?
You can click on the BUY or RFQ button to purchase 1029600000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1029600000?
You can download the 1029600000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1029600000?
WEIDMULLER
