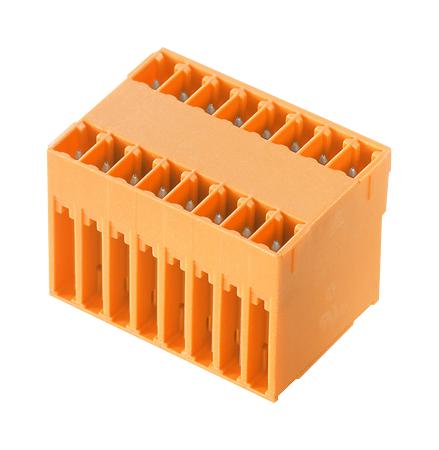

WEIDMULLER 1029970000 PCB Header
This two-tier SCD pin header from Weidmüller features a 3.81 mm pitch and 12 poles, designed for wave soldering applications. It allows dual interface connection on a single surface, streamlining assembly with a 180° outlet direction and flush access for front board connections. The robust orange plastic insulator offers space for labeling, and the tinned copper contacts ensure reliable electrical connections. Suitable for PCB mounting with THT soldering, this connector is rated for 320V and 17A, compliant with safety standards and ideal for automation and industrial electronics requiring secure, flexible interconnects.
WEIDMULLER 1029970000 PCB Header Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 12
- Solder pin length: 3.2 mm (+0.02 / -0.02 mm)
- Solder pin diameter: 1.0 mm, octagonal, with tolerance
- Solder eyelet hole diameter: 1.2 mm
- Insulating material: PA GF (Orange, RAL 2000)
- Contact material: Copper alloy, tinned
- Voltage rating: 320V (IEC), 300V (UL)
- Current rating: 17A (IEC), 10A (UL)
- Operating temperature: -50°C to 120°C
- Withstand voltage: 2.5 kV
- Protection: Touch-safe, IP20
- Number of solder pins: 2 per pole
- Plugging cycles: 25
- Width: 19.05 mm (0.75 inches)
- Dimensions and tolerances: consistent with standard PCB components
Buy the Buy Weidmüller SCD 3.81/12/180G Part Number 1029970000 Online
Purchase the Weidmüller SCD 3.81/12/180G PCB header online today. This versatile, high-performance connector features 12 poles with a 3.81mm pitch, ideal for wave soldering processes. Its robust design includes tinned copper contacts, a flame-retardant insulator, and space for labelling, making it suitable for demanding industrial applications. With rated voltages up to 320V and currents of 17A, it ensures secure electrical connections. Order now to benefit from fast delivery and expert support for your assembly needs.
Buy Weidmüller SCD 3.81/12/180G now and ensure reliable, high-quality wave soldering connections for industrial and automation projects.
