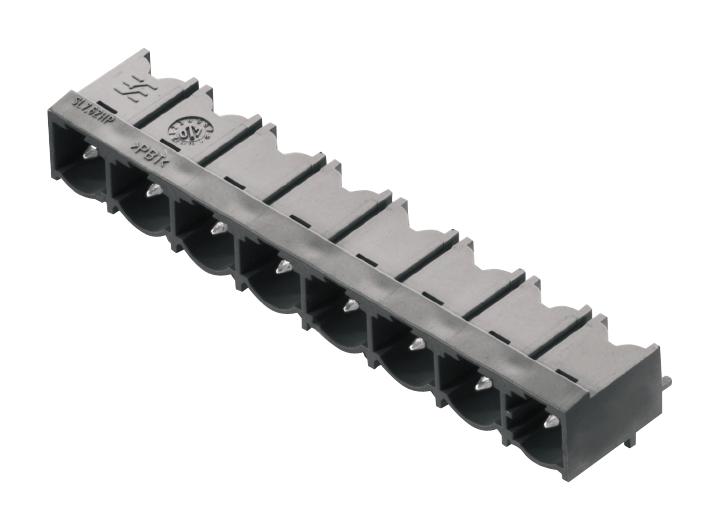

WEIDMULLER 1059510000 Power Connector
The OMNIMATE Power series BL/SL 7.62HP is a robust, compact PCB connector designed for UL-600V applications up to 12 kVA. Featuring an 8-pole male header with 7.62 mm pitch, 90° outlet angle, and THT solder connection, it provides excellent touch safety and reliable electrical connection. Constructed with copper alloy contacts and PBT insulation, it meets IEC and UL standards for safety and performance, suitable for industrial automation, power supply, and device manufacturing. Its versatile design ensures efficient, space-saving wiring solutions in demanding environments.
WEIDMULLER 1059510000 Power Connector Specifications:
- Pitch: 7.62 mm (0.3 inch)
- Number of Poles: 8
- Solder Pin Length: 3.2 mm
- Solder Pin Dimensions: 1.0 x 1.0 mm
- Solder Eyelet Hole Diameter: 1.3 mm
- Rated voltage IEC: 630 V
- Rated current IEC: 29A
- Rated voltage UL: 300 V
- Rated current UL: 20A
- Operating Temperature Range: -50°C to 100°C
- Storage Temperature: -25°C to 55°C
- Creepage Distance: 8.1 mm
- Clearance: 6.5 mm
- Contact Material: Copper alloy
- Contact Surface: Ni/Sn tinned
- Insulating Material: PBT, Black, RAL 9011
- Flammability Rating: UL 94 V-0
- Protection Class: IP20
- Material Group: Mla
- UL and IEC compliance for safety and performance
- Dimensions: 53.34 mm length, 7.62 mm pitch
- Compliance: RoHS conform
- Maximum Soldering Temps: 260°C, wave soldering recommended with profiles
Buy the Buy Weidmuller OMNIMATE Power Series BL/SL 7.62HP Part Number 1059510000 Online
Secure your industrial wiring with the Weidmuller OMNIMATE Power connector, series BL/SL 7.62HP, featuring 8 poles, 7.62 mm pitch, and UL/IEC safety standards. Its robust copper alloy contacts and PBT insulation ensure durability and safety in power supply, automation, and device assembly. Designed for quick PCB mounting with THT soldering, it offers excellent touch safety and high current capacity up to 29A IEC and 20A UL. Order online now to streamline your wiring and enhance device reliability in demanding industrial environments.
Order your Weidmuller Series 7.62HP 1059510000 PCB connector today and enjoy reliable, space-saving power connections for your industrial projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1059510000?
You can click on the BUY or RFQ button to purchase 1059510000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1059510000?
You can download the 1059510000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1059510000?
WEIDMULLER
