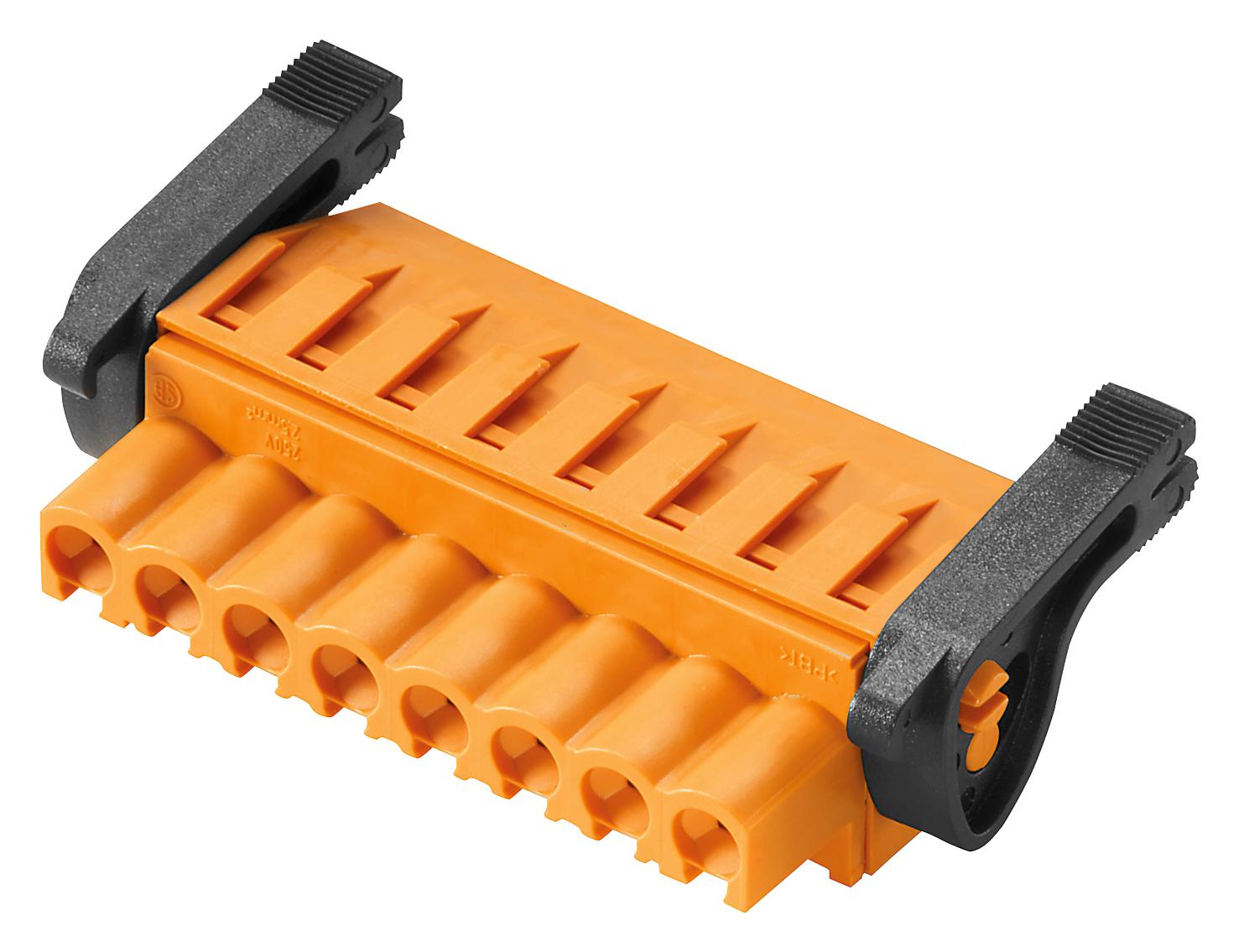

WEIDMULLER 1087300000 PCB Connector
The female PCB plug connector with a 5.08 mm pitch offers a reliable connection solution for industrial wiring systems. It features a clamping yoke connection, enabling wires up to 4 mm², and supports right-angle outlet directions of 90°. Made from insulating PBT with a tinned copper alloy contact surface, it provides a safety contact area with finger protection. Designed for easy coding and labelling, it withstands operating temperatures from -60°C to 100°C and has a rated voltage of 400 V with a current capacity of 23 A. Suitable for automation, control systems, and industrial wiring, it ensures durable, secure, and simplified wiring connections in demanding environments.
WEIDMULLER 1087300000 PCB Connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of Poles: 7
- Clamping Range: up to 4 mm²
- Rated Voltage: 400 V (IEC), 300 V (UL/CSA)
- Rated Current: 23 A (IEC), 20 A (UL/CSA)
- Wire Cross Section: AWG 30-12
- Contact Material: Copper alloy, tin-plated
- Contact Surface: Sn hot-dip tinned, 4-8 μm
- Operating Temperature: -60°C to 100°C
- Storage Temperature: -25°C to 55°C
- Flammability Rating: UL 94 V0
- Protection Class: Finger safe according to DIN VDE
- Insulation Material: PBT, orange (RAL 2000)
- Max. Relative Humidity (storage): 80%
- Tightening Torque: 0.4-0.5 Nm
- Stripping Length: 7 mm
- Plugging Cycles: 25
Buy the Weidmiiller 1087300000 – Reliable PCB Connector for Industrial Applications
Order the Weidmiiller PCB connector online today and experience a high-quality, durable connection solution for industrial control and wiring systems. This 7-pole connector with a 5.08 mm pitch features a clamping yoke mechanism capable of handling wires up to 4 mm², ensuring secure and reliable connections. Its finger-safe design, easy coding options, and robust materials make it ideal for automation, control panels, and demanding environments. Purchase now to benefit from quick delivery, easy installation, and superior performance that enhances your industrial wiring projects.
Get Weidmiiller 1087300000 today—built for precision and long-lasting durability in demanding industrial wiring and automation systems.
