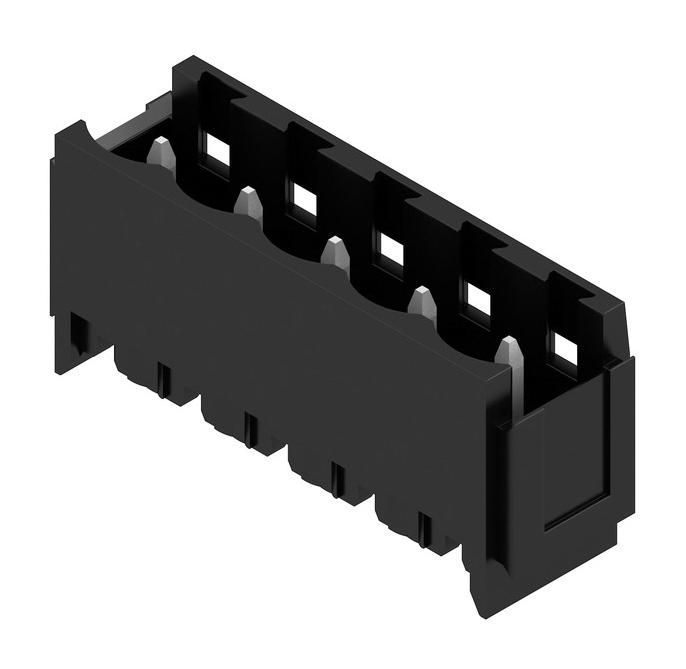

WEIDMULLER 1149500000 PCB Pin Header
The Weidmüller OMNIMATE Signal series SL 5.08HC/05/180B 3.2SN BK BX is a rectangular pin header designed for PCB connections with a 5.08 mm pitch. Made from glass-fiber-reinforced plastic, it features straight wire outlets optimized for wave soldering. The flange variant allows screw mounting, while the solder flange version protects solder points from mechanical strain. Suitable for high current applications, it offers reliable electrical connections with tinned, octagonal solder pins, and a robust construction. Designed for versatile automation and control system integrations, ensuring durable and safe power transmission.
WEIDMULLER 1149500000 PCB Pin Header Specifications:
- Number of poles: 5
- Pitch in mm: 5.08 mm
- Solder pin length: 3.2 mm (+0.17/-0.3 mm tolerance)
- Solder pin diameter: 1.2 mm, octagonal shape
- Pin dimensions tolerance: ±0.03 mm
- Material: PA GF black insulator, copper alloy contacts, tinned surface
- Rated voltage: 400V / 300V UL / CSA
- Rated current: 24A / 18.5A UL, 18.5A UL, 19A at 40°C, 21A at 40°C
- Operating temperature: -50°C to 100°C
- Storage temperature: -40°C to 70°C
- Flammability rating: UL 94 V0
- Contact resistance: <5mΩ
- Number of plug cycles: 25
- Overall dimensions: Width 27.16 mm, Height 15.2 mm, Depth 8.5 mm
- Weight: 1.2849 g
Buy the Weidmüller Series SL 5.08HC PCB Pin Header: 1149500000
Purchase the Weidmüller SL 5.08HC/05/180B PCB pin header online today and enjoy reliable, high-current connections for your automation and control applications. Designed with a 5.08 mm pitch and optimized for wave soldering, this robust component features a flange for easy mounting or a solder flange that protects solder points from mechanical strain. Its durable design ensures long-lasting performance, excellent electrical contact, and reliable power transmission for demanding industrial environments. Secure your system's connections now and benefit from quick, hassle-free online ordering.
Get Weidmüller SL 5.08HC/05/180B high-current PCB header today—built for secure, long-lasting electrical connections in automation systems.
