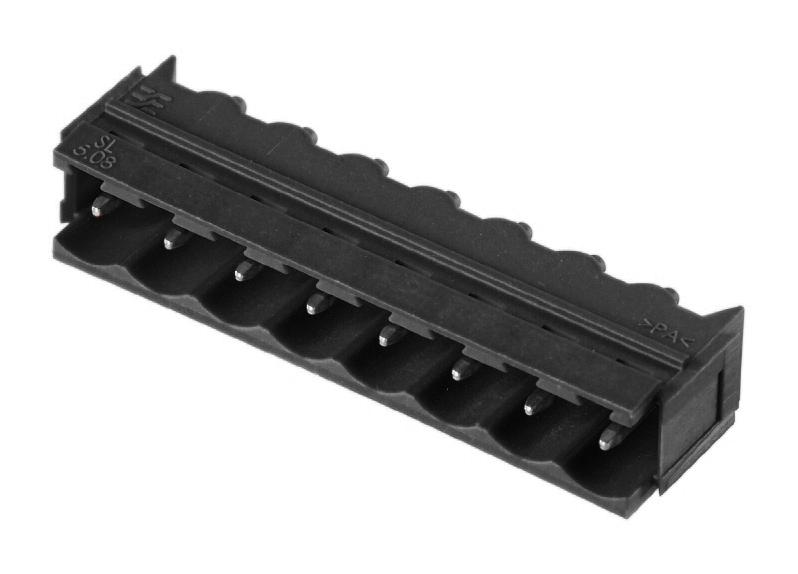

WEIDMULLER 1155600000 PCB Plug-in Connector
The Weidmuller OMNIMATE Signal series BL/SL 5.08 SL 5.08HC/04/90B 3.2SN BK BX is a PCB plug-in connector designed for robust and reliable connections. It features a 90° wire outlet, optimized for wave soldering, and incorporates dovetails for secure fixing blocks. The connector's design protects solder points from mechanical strain, ensuring long-term performance in industrial applications. It is suitable for a wide range of applications requiring secure and efficient board-to-board connections, particularly in automated equipment and control systems.
WEIDMULLER 1155600000 PCB Plug-in Connector Specifications:
- Type: SL 5.08HC/04/90B 3.2SN BK BX
- Order No.: 1155600000
- Version: PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection
- Number of poles: 4
- Solder pin length (l): 3.2 mm
- Width: 22.08 mm
- Height: 11.7 mm
- Depth: 12 mm
- Net weight: 1.73 g
- Product family: OMNIMATE Signal - series
- Mounting onto the PCB: THT solder connection
- Pitch in inches(P): 0.2 inch
- Solderpin length(l): 3.2 mm
- Tolerance of solderpinposition: ± 0.1 mm
- Solder eyelet hole diameter: 1.3 mm
- L1 in mm: 15.24 mm
- Number of rows: 1
- Volume resistance: ≤ 5mΩ
- Pluggingcycles: 25
- Insulating material: PA GF
- Colour: black
- Rated current, max. number of poles (Tu=20°C): 19 A
- Rated current, max. number of poles (Tu=40°C): 16.5 A
- Rated voltage for surge voltage class / pollution degree III/2: 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
- Rated voltage(UsegroupB/CSA): 300 V
- Rated current (Use group B / CSA): 18.5 A
- Rated voltage(UsegroupD/CSA): 300 V
- Rated current (Use group D / CSA): 10 A
- Rated voltage(UsegroupB/UL 1059): 300 V
- Rated current(UsegroupB/UL 1059): 18.5 A
