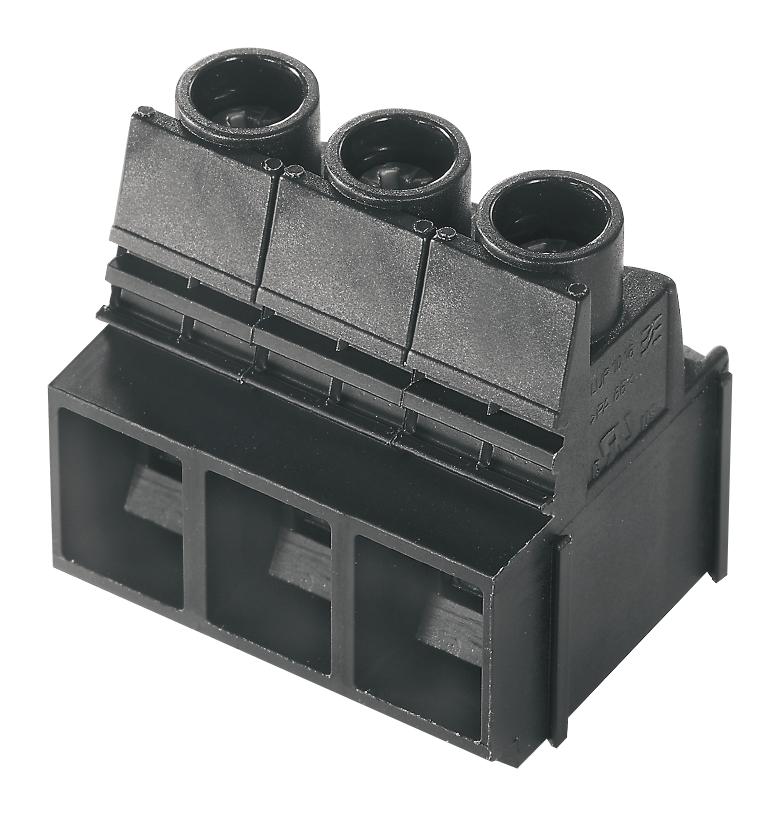

WEIDMULLER 1226290000 PCB Terminal
This PCB terminal offers reliable connections for industrial and electrical applications, supporting up to 1000 V and 76 A with a 16 mm conductor cross-section. Designed with proven clamping yoke connection at a 10.16 mm pitch and 90° conductor outlet direction, it incorporates a solder pin length of 3.2 mm, black tin-plated contacts, and a robust insulative body made of Wemid (PA) in black color. Suitable for PCB mounting via THT soldering, it features 2 poles, a contact surface of tinned copper, a maximum clamping range of 16 mm, and compatibility with AWG 22–6 wire sizes, ensuring secure and safe electrical connections for complex automation and power distribution setups.
WEIDMULLER 1226290000 PCB Terminal Specifications:
- Rated voltage IEC: 1000 V, UL: 300 V
- Rated current IEC: 76 A, UL: 58 A
- Number of poles: 2
- Pitch: 10.16 mm (0.4 inch)
- Solder pin length: 3.2 mm
- Solder pin dimensions: 12 x 1.2 mm
- Solder eyelet hole diameter: 1.6 mm
- Max. clamping range: 16 mm
- Wire connection range: AWG 22 to AWG 6
- Clamping method: Yoke connection
- Material: Wemid (PA), color: black
- Contact surface: Tinned copper
- Temperature range, operating: -50°C to 120°C
- Flammability rating: UL 94 V0
- Tightening torque: 1.2 to 1.5 Nm
- Touch-safe protection: IP20 plugged / IP10 unplugged
