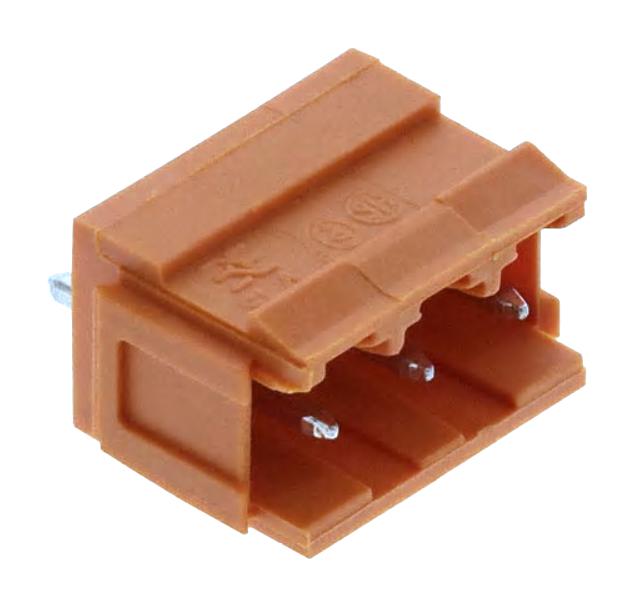

WEIDMULLER 1242660000 Signal Connector
The WEIDMULLER OMNIMATE Signal series BLA/SLA 5.08 SLA 03/180B 3.2SN OR BX is a versatile PCB plug-in connector designed for robust and reliable connections in industrial applications. Featuring a 5.08mm pitch and a 180° outgoing elbow, this connector offers flexibility in board layout. The tinned contacts ensure excellent solderability and corrosion resistance. It is suitable for applications requiring high current carrying capacity and is designed for easy integration into automated assembly processes. The connector's codable design prevents incorrect connections, enhancing overall system reliability.
WEIDMULLER 1242660000 Signal Connector Specifications:
- Type: SLA 03/180B 3.2SN OR BX
- Order No.: 1242660000
- Version: PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection
- Number of poles: 3
- Solder pin length (l): 3.2 mm
- Color: orange
- Insulating material: PBT GF
- Comparative Tracking Index (CTI): ≥ 200
- UL 94 flammability rating: V-0
- Contact material: CuSn
- Rated current, max. number of poles (Tu=20°C): 17.5 A
- Rated voltage for surge voltage class / pollution degree III/2: 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
- Width: 17.24 mm
- Height: 15.2 mm
- Depth: 9.4 mm
- Net weight: 1.56 g
- Pitch in mm(P): 5.08 mm
- Outgoing elbow: 180°
- Solder eyelet hole diameter: 1.3 mm
- L1 in mm: 10.16 mm
- Volume resistance: 5.50 mΩ
- Plugging cycles: 25
- Rated voltage(UsegroupB/CSA): 300 V
- Rated current(UsegroupB/CSA): 10 A
- Rated voltage(UsegroupD/CSA): 300 V
- Rated current(UsegroupD/CSA): 10 A
- Rated voltage(UsegroupB/UL 1059): 300 V
- Rated current(UsegroupB/UL 1059): 10 A
- Rated voltage(UsegroupD/UL 1059): 300 V
- Rated current(UsegroupD/UL 1059): 10 A
