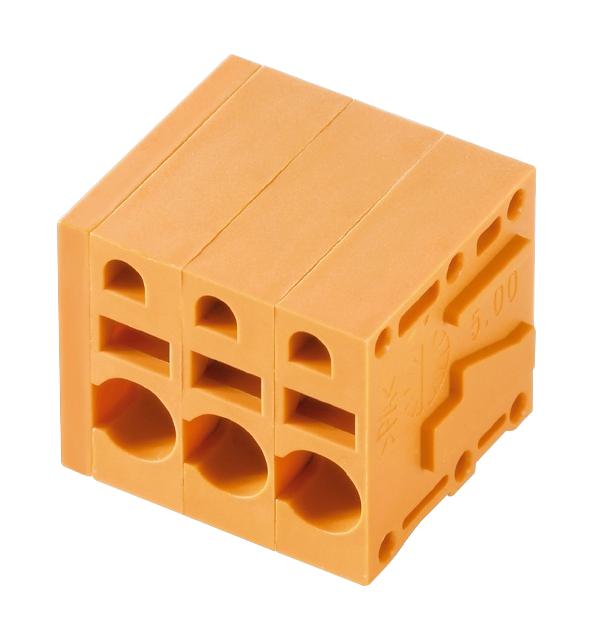

WEIDMULLER 1330970000 LMF LMFS PCB Terminal Block
The Weidmuller LMF LMFS 5.08/03/90 3.5SN OR BX PCB terminal block is designed to meet current market requirements for PCB terminals. It utilizes a PUSH IN connection system, accommodating wire cross-sections up to 2.5 mm². The integrated test point simplifies testing and troubleshooting, while the 90° wire outlet direction provides flexibility in routing. This terminal block is suitable for a variety of industrial applications requiring reliable and efficient PCB connections.
WEIDMULLER 1330970000 LMF LMFS PCB Terminal Block Specifications:
- Base Material: CuSn
- Coating: 4-6μm SN
- Insulating Material: Wemid (PA)
- Color: Orange
- Clamping Range Min: 0.12 mm²
- Clamping Range Max: 2.5 mm²
- Wire Connection Cross Section AWG Min: AWG 24
- Wire Connection Cross Section AWG Max: AWG 12
- Solid Wire Max: 2.5 mm²
- Flexible Wire Max: 2.5 mm²
- Solder Pin Length: 3.5 mm
- Pitch: 5.08 mm
- Number of Poles: 3
- Rated Voltage IEC: 400 V
- Rated Current IEC: 24 A
- Rated Voltage UL: 300 V
- Rated Current UL: 20 A
- Flammability Rating: V-0
- Storage Temperature Max: 55 °C
- Operating Temperature Min: -50 °C
- Operating Temperature Max: 120 °C
- Touch-Safe Protection: DIN VDE 57 106, DIN VDE 0470, IP 20
