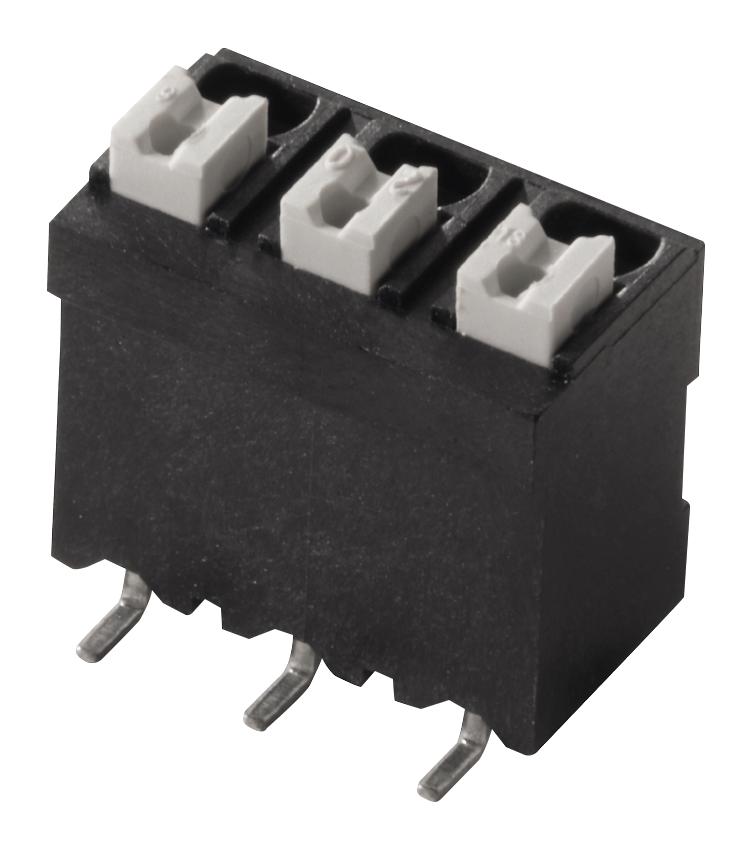

WEIDMULLER 1473680000 SMD PCB Terminal Connector
The Weidmuller OMNIMATE Signal series LSF-SMD 5.00/08/180 SN BK RL is a PCB terminal connector engineered for automated assembly using reflow soldering. Its innovative PUSH IN technology allows for easy and secure connection of solid and stranded wires without the need for tools. The clear marking of potentials and clamping points enhances usability, while the intuitive design separates the wire-entry and handling areas. Suitable for a wide range of applications, this connector offers a robust and efficient solution for PCB connections.
WEIDMULLER 1473680000 SMD PCB Terminal Connector Specifications:
- Type: LSF-SMD 5.00/08/180 SN BK RL
- Order No.: 1473680000
- Version: PCB terminal, 5.00 mm, No. of poles: 8, 180°, Black, PUSH IN, Clamping range, max. : 1.5 mm²
- GTIN(EAN): 4050118280302
- Qty.: 180pc(s).
- Product data (IEC): 500 V / 17.5 A / 0.2 - 1.5 mm²
- Product data (UL): 300 V/12 A/AWG 24 - AWG 16
- Packaging: Tape (Ø 330 mm); Rs = 109- 1012Ω
- Net weight: 7.271 g
- Product family: OMNIMATE Signal - series
- Mounting onto the PCB: SMD solder connection
- Pitch in mm(P): 5 mm
- No. of poles: 8
- Coplanarity: 100μm
- Strippinglength: 8 mm
- L1 in inches: 1.378 inch
- Wire connection method: PUSH IN
- Conductor outlet direction: 180°
- Pitch in inches(P): 0.197 inch
- Fitted by customer: No
- Number of solderpins per pole: 2
- L1 in mm: 35 mm
- Insulating material: LCP GF
- Colour: Black
- Insulating material group: IIIa
- Insulation resistance: ≥ 108Ω
- UL 94 flammability rating: V-0
- Layer structure of solder connection: 4-6µm Sn matt
- Storage temperature, min.: -25 °C
- Max. relative humidity during storage: 80 %
- Operating temperature, max.: 120 °C
- Temperature range, installation, max.: 120 °C
- Clamping range, min.: 0.13 mm²
- Wire connection cross section AWG, min.: AWG 24
- Solid, min.: H05(07)V-U 0.2 mm²
- Flexible, min.: H05(07)V-K 0.2 mm²
- w. plastic collar ferrule, min.: 0.25 mm²
- w. wire end ferrule, min.: 0.25 mm²
- Clamping range, max.: 1.5 mm²
- Wire connection cross section AWG, max.: AWG 16
- Solid, max.: H05(07)V-U 1.5 mm²
- Flexible, max.: H05(07)V-K 1.5 mm²
- w. plastic collar ferrule, max.: 0.75 mm²
- w. wire end ferrule, max.: 1.5 mm²
- Rated current, max. no. of poles (Tu=20°C): 17.5 A
- Rated current, max. no. of poles (Tu=40°C): 15 A
- Rated voltage for surge voltage class / pollution degree III/2: 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
- Rated current, min. no. of poles (Tu=20°C): 17.5 A
- Rated current, min. no. of poles (Tu=40°C): 17.5 A
- Rated voltage for surge voltage class / pollution degree II/2: 500 V
- Rated voltage for surge voltage class / pollution degree III/3: 250 V
- Short-time withstand current resistance: 3 x 1s with 80 A
- Institute (CSA): Rated voltage(UsegroupB) 300 V
- Certificate No. (CSA): 200039-1664286
- Institute (cURus): Rated voltage(usegroupB) 300 V
- Certificate No. (cURus): E60693
- ETIM 3.0: EC001284
- ETIM 5.0: EC002643
- eClass 6.2: 27-26-11-01
- eClass 8.1: 27-44-04-01
- eClass 9.1: 27-44-04-01
- ETIM 4.0: EC002643
- ETIM 6.0: EC002643
- eClass 7.1: 27-44-04-01
- eClass 9.0: 27-44-04-01
