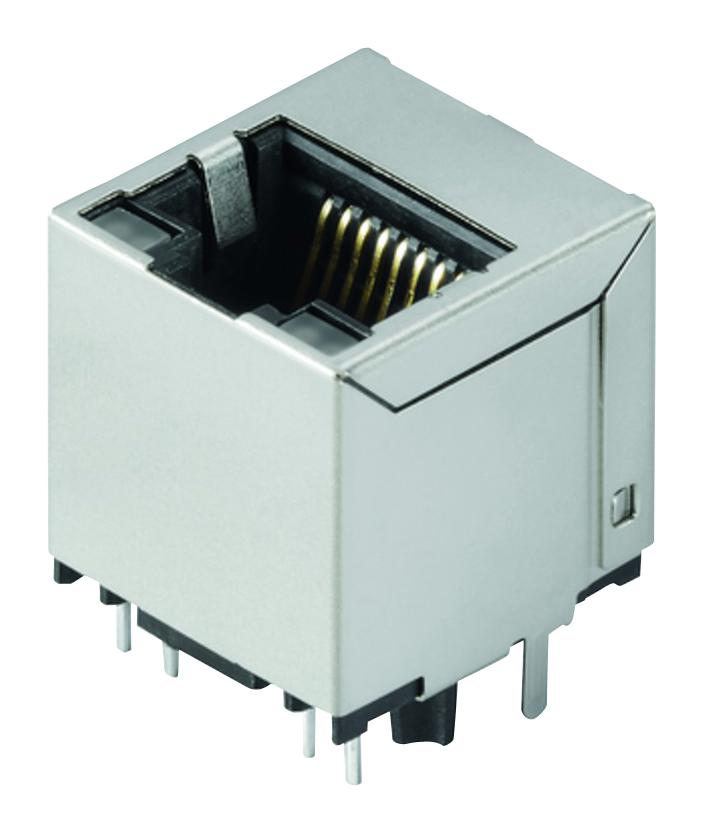

WEIDMULLER 1534750000 RJ45 Jack Transformer
The WEIDMULLER RJ45M R1V 3.3N4YG/YG TY is a high-performance RJ45 jack transformer specifically engineered for gigabit Ethernet applications. This component actively counteracts inductive and capacitive couplings, saving valuable space on the PCB. It supports both THT (Through-Hole Technology) and THR (Tape-on-Reel) soldering processes, providing flexibility in manufacturing. The extended temperature range of -40°C to +85°C ensures reliable operation in demanding environments. A reinforced gold layer enhances corrosion protection, extending the lifespan of the connection. Ideal for networking equipment, industrial automation, and telecommunications infrastructure, this transformer delivers robust and dependable data transmission.
WEIDMULLER 1534750000 RJ45 Jack Transformer Specifications:
- Type: RJ45M R1V 3.3N4YG/YG TY
- Order No.: 1534750000
- Version: PCB plug-in connector, RJ45 jacks transformer, THT/THR solder connection, 1.27 mm, 8 poles, 180°, Solder pin length: 3.2 mm, Gold over nickel, Black, Tray
- GTIN(EAN): 4050118338416
- Quantity: 120pc(s)
- Packaging: Tray (manual assembly)
- Net weight: 4.208 g
- Operating temperature, max: 85 °C
- Operating temperature, min: -40 °C
- Storage temperature, max: 85 °C
- Storage temperature, min: -40 °C
- Colour of left LED: green/ yellow
- Colour of right LED: green/ yellow
- No. of poles: 8
- Outgoing elbow: 180°
- Pitch in inches: 0.05 inch
- Plugging cycles: 750
- Protection degree: IP20
- Shield tabs: none
- Shielding material: Brass
- Solder eyelet hole diameter tolerance: ± 0.1 mm
- Solder pin length: 3.2 mm
- Type of connection: Socket
- Number of solder pins per pole: 1
- Pitch in mm: 1.27 mm
- Product family: OMNIMATE Data - RJ45 jacks transformer
- Shield surface: nickel-plated
- Shielding: Yes
- Solder eyelet hole diameter: 0.9 mm
- Solder pin dimensions: 0.40 x 0.30 mm, LED pins = 0.50 x 0.50 mm
- Transmission rate: 10/100 Mbit/s
- Wiring: 8-core
- Dielectric strength, contact/contact: ≥ 1000 V DC
- Rated current: 1.5 A
- Insulation resistance: > 500 MΩ
- Rated voltage: 125 V AC
- Insulating material: PA 9T
- Colour: Black
- Insulating material group: II
- UL 94 flammability rating: V-0
- Contact base material: Phosphorus bronze
- Layer structure of plug contact: 30-80µ" Ni/30-µ" Au
