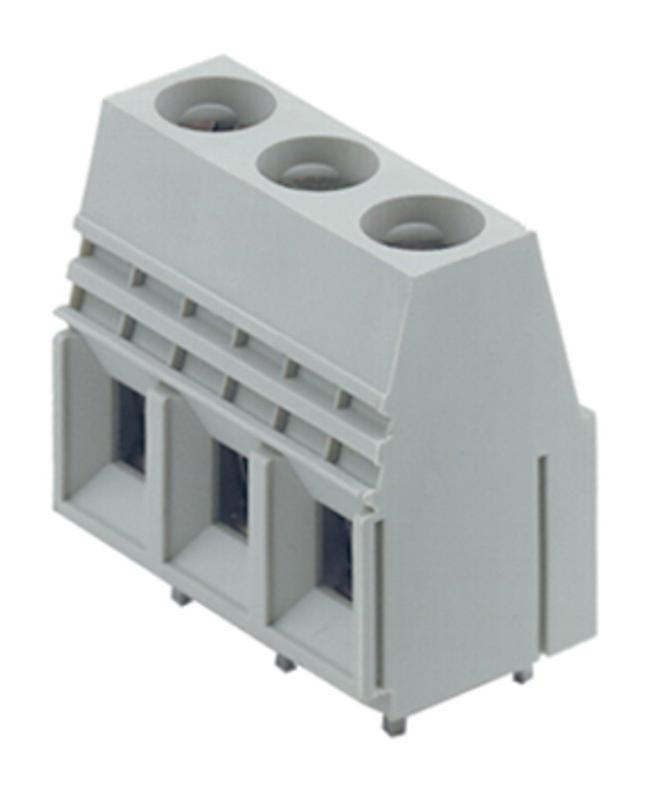

WEIDMULLER 1648300000 Power Terminal Block
The Weidmueller OMNIMATE Power series LU terminal block is designed for PCB connections, handling up to 76 A and conductor cross-sections up to 16 mm². It features a clamping yoke connection at a 10.16 mm pitch, with a 90° conductor outlet, making it suitable for high-current power applications in automation and electrical distribution. Its compact dimensions of 30.48 mm width and 33 mm height, along with a robust tinned copper contact surface, ensure reliability and ease of installation in demanding environments.
WEIDMULLER 1648300000 Power Terminal Block Specifications:
- Dimensions: Width 30.48 mm, Height 33 mm, Depth 18.3 mm
- Current Rating: IEC 76 A, UL 65 A, CSA 65 A
- Voltage Rating: IEC 1000 V, UL 300 V, CSA 300 V
- Number of Poles: 3, Pitch: 10.16 mm
- Solder Pin Length: 4.5 mm, Solder Pin Dimensions: 1.2x1.2 mm, Hole Diameter: 1.6 mm
- Material: Insulating Wemid (PA), Contact Material: Cu, Tinned with Ni/Sn
- Rated Temperature Range: -50°C to 120°C, Insulation Group: I
- Clamp Range: 0.14 mm² to 16 mm², Max Clamping Range: 16 mm
- Operating Temp: -50°C to 120°C, Storage Temp: -40°C to 70°C
- Protection Class: IP20 plugged, IP10 unplugged
- Certifications: UL, CSA, RoHS, compliant with IPC standards
Buy the Buy Weidmueller Power Series LU Part Number 1648300000 Online
Discover the Weidmueller Power series LU terminal block, a high-current PCB connection solution rated up to 76 A and 16 mm² capacity. Featuring a rugged clamping yoke connection and a 10.16 mm pitch, it provides secure and reliable power distribution in industrial settings. The PCB terminal is designed for easy soldering with a 4.5 mm pin length and a robust, corrosion-resistant contact surface. Its compact size and high-quality insulation make it ideal for demanding automation and electrical systems. Order online today for fast delivery and dependable performance.
Order your Weidmueller Series LU 1648300000 today and enhance your power distribution with a reliable PCB terminal block capable of handling high current loads.
Frequently Asked Questions
Where can I buy WEIDMULLER 1648300000?
You can click on the BUY or RFQ button to purchase 1648300000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1648300000?
You can download the 1648300000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1648300000?
WEIDMULLER
