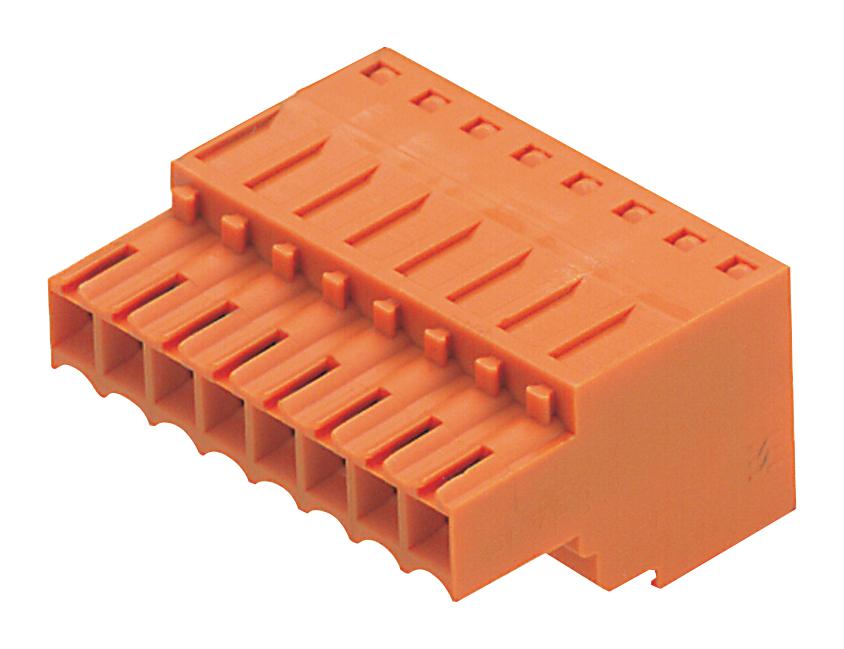

WEIDMULLER 1703790000 PCB Terminal
This compact PCB terminal features a proven clamping yoke connection and a 3.5 mm pitch, suitable for conductor cross-sections up to 1.5 mm² (IEC) / 28-14 AWG (UL). It supports a voltage rating of 320 V (IEC) / 300 V (UL) and a current capacity of 16 A (IEC) / 10 A (UL). Designed for industrial automation and electrical wiring, it offers reliable solder pin connections, a robust orange insulating body, and compliance with international safety standards. Perfect for PCB wiring in control panels and instrumentation.
WEIDMULLER 1703790000 PCB Terminal Specifications:
- Pitch: 3.5 mm (0.138 inches)
- Number of poles: 22
- Solder pin length: 3.2 mm
- Rated voltage: 320 V (IEC), 300 V (UL)
- Rated current: 16 A (IEC), 10 A (UL)
- Conductor cross-section: 0.20 - 1.50 mm² (IEC) / 28 - 14 AWG (UL)
- Clamping range: 0.08 mm² to 2.08 mm²
- Insulation material: PA, Orange color
- Contact material: Copper alloy with tin plating
- Solder eyelet hole diameter: 1.3 mm
- Operating temperature: -60°C to +100°C
- Flammability rating: UL 94 V-2
- Protection: IP20, touch-safe according to DIN VDE 0470
- Tinning: 1-3 µm Ni, 4-6 µm Sn
Buy the Buy Weidmuller Signal Series PCB Terminal Part Number 1703790000 Online
Purchase the Weidmuller PCB Terminal with clamp connection, 3.5 mm pitch, and rated for 320 V and 16 A. Ideal for control panels and automation with durable insulator and secure solder pins. Designed for reliable, high-quality electrical connections in industrial environments, it ensures safety and compliance with international standards. Order online today for fast delivery and enhanced wiring efficiency, ensuring your electrical setup is safe, stable, and ready for demanding applications.
Buy Weidmuller 1703790000 now and experience unmatched reliability and performance in industrial wiring and automation applications.
