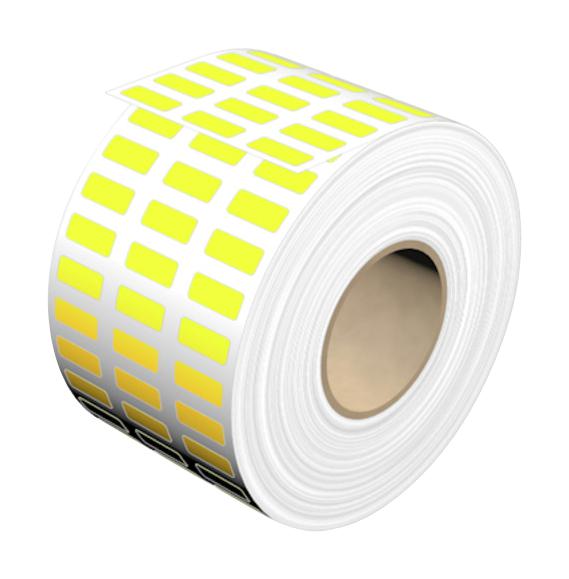

WEIDMULLER 1753231687 THM Device Markers
WEIDMULLER THM MT30X 15/6 GE device markers provide a reliable solution for identifying and organizing electrical components. These markers are constructed from high-quality polyester material and feature a strong acrylate adhesive for secure attachment. The thermal transfer printing process ensures brilliant and long-lasting markings, making them suitable for a wide range of industrial applications, including panel building, control cabinet construction, and cable management. The markers are halogen-free and compatible with Weidmüller's M-Print® PRO software for easy design and printing.
WEIDMULLER 1753231687 THM Device Markers Specifications:
- BasePartno: THM MT30X 15/6 GE
- Order No.: 1753231687
- Version: THM, Device markers, 6 x 15 mm, yellow
- GTIN(EAN): 4032248008414
- Quantity: 1pc(s).
- Compatible Printer: 2430920000, 2448870000
- Width: 15 mm
- Height: 6 mm
- Depth: 0.08 mm
- Net Weight: 208 g
- Width (inches): 0.591 inch
- Height (inches): 0.236 inch
- Depth (inches): 0.003 inch
- Adhesive: Acrylate
- Halogen: No
- Number per Roll: 10,000
- Printing Method: Thermotransfer
- Color: yellow
- Material: Polyester
- Operating Temperature Range: -40...150 °C
- UL 94 Flammability Rating: V-0
- ETIM 3.0: EC001288
- ETIM 5.0: EC001288
- UNSPSC: 30-21-18-01
- eClass 6.2: 27-14-91-29
- eClass 8.1: 27-14-91-03
- eClass 9.1: 27-40-06-29
- ETIM 4.0: EC001288
- ETIM 6.0: EC001288
- eClass 5.1: 27-14-91-29
- eClass 7.1: 27-14-91-29
- eClass 9.0: 27-40-06-29
- ROHS: Conform
- Engineering Data: EPLAN, WSCAD, Zuken E3.S
- Software: M-Print PRO configuration file
