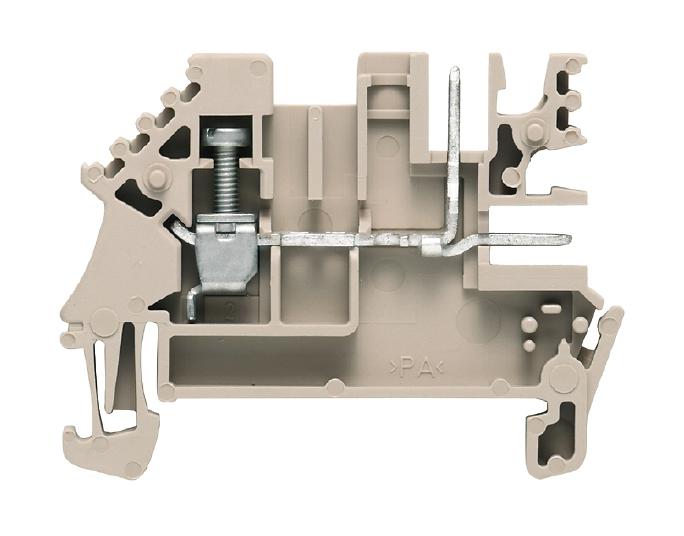

WEIDMULLER 1784460000 Feed-through Terminal Block
The Weidmuller WDU 1.5/ZQV/BLZ 5.08 terminal block is designed for reliable and efficient power distribution in a variety of industrial applications. It utilizes clamping yoke technology, simplifying planning and optimizing operational safety. This terminal block is part of the W-Series and features a compact design, making it suitable for space-constrained environments. It supports a rated cross-section of 1.5 mm² and offers robust connection capabilities for various wire types, ensuring secure and long-lasting electrical connections.
WEIDMULLER 1784460000 Feed-through Terminal Block Specifications:
- Type: WDU 1.5/ZQV/BLZ 5.08
- Order No.: 1784460000
- Version: 1 plug-in connection - 2 plug-in connections, for plug-in cross-connector, One end without connector
- GTIN(EAN): 4032248197002
- Quantity: 100 pc(s).
- Width: 5.08 mm
- Height: 49 mm
- Depth: 37 mm
- Depth including DIN rail: 37.5 mm
- Width(inches): 0.2 inch
- Height(inches): 1.929 inch
- Depth(inches): 1.457 inch
- Net weight: 4.62 g
- Storage temperature,max: 55 °C
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., max: 120 °C
- Storage temperature,min: -25 °C
- Continuous operating temp.,min: -50 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: dark beige
- Number of potentials: 1
- Number of clamping points per level: 3
- Levels cross-connected internally: No
- Rail: TS 35
- PE function: No
- End cover plate required: Yes
- Number of levels: 1
- Number of potentials per tier: 1
- PE connection: No
- N-function: No
- PEN function: No
- Cross-section for connected wire, solid, two clampable wires,min: 0.5 mm²
- Wire connection cross section, finely stranded, two clampable wires,min: 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min: 0.5 mm²
- Cross-section for connected wire, solid, two clampable wires,max: 2.5 mm²
- Wire cross-section, finely stranded, two clampable wires,max: 1.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max: 1.5 mm²
- Explosion-tested version: No
- Number of similar terminals: 1
- Type of mounting: Snap-on
- Certificate No.(CSA): 200039-1057876
- Current size C(CSA): 20 A
- Voltage size B(CSA): 300 V
- Voltage size D(CSA): 600 V
- Wire cross section min. (CSA): 26 AWG
- Current size B(CSA): 20 A
- Current size D(CSA): 5 A
- Voltage size C(CSA): 300 V
- Wire cross section max.(CSA): 12 AWG
- ETIM 6.0: EC000897
- eClass 9.0: 27-14-11-20
- eClass 10.0: 27-14-11-20
- ETIM 7.0: EC000897
- eClass 9.1: 27-14-11-20
- UNSPSC: 30-21-18-11
- Rated cross-section: 1.5 mm²
- Rated current: 16 A
- Standards: IEC 61984, In accordance with IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x: 0.56 W
- Pollution severity: 3
- Rated voltage: 250 V
- Current at maximum wires: 16 A
- Volume resistance according to IEC 60947-7-x: 1.83 mΩ
- Rated impulse withstand voltage: 4 kV
