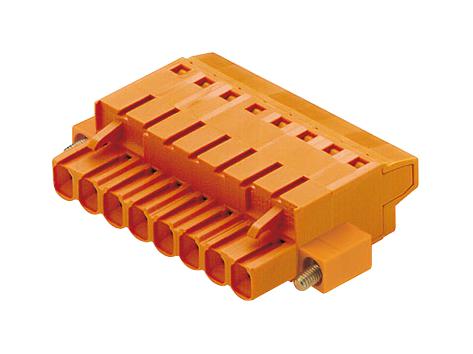

WEIDMULLER 1844080000 Female Plug Connector
The WEIDMULLER OMNIMATE Signal BL/SL 5.08 BLT 5.08HC/11/180F SN OR BX is a female plug connector designed for PCB applications. It utilizes a TOP screw connection system, providing a secure and reliable connection for wires. The connector features a 5.08mm pitch and 11 poles, offering flexibility in circuit design. It is suitable for applications requiring space for labelling and can be coded for identification. The HC (High Current) designation indicates its ability to handle higher current loads. This connector is ideal for industrial automation, control systems, and other applications where robust and reliable connectivity is essential.
WEIDMULLER 1844080000 Female Plug Connector Specifications:
- Type: PCB plug-in connector, female plug
- Order No.: 1844080000
- Version: PCB plug-in connector, female plug, 5.08 mm
- No. of poles: 11
- Connection angle: 180°
- Connection type: TOP connection
- Clamping range (max.): 2.5 mm²
- GTIN (EAN): 4032248356003
- Quantity: 24 pc(s)
- Rated voltage (IEC): 400 V
- Rated current (IEC): 27 A
- Conductor size (IEC): 0.2 - 2.5 mm²
- Rated voltage (UL): 300 V
- Rated current (UL): 17 A
- Conductor size (UL): AWG 26 - AWG 14
- Packaging: Box
- Pitch (inches): 0.2 inch
- Pitch (mm): 5.08 mm
- Conductor outlet direction: 180°
- Number of rows: 1
- Rated cross-section: 2.5 mm²
- Volume resistance: 4.50 mΩ
- Stripping length: 13 mm
- Tightening torque (screw flange, min.): 0.15 Nm
- Tightening torque (min.): 0.4 Nm
- Clampingscrew: M 2.5
- Screwdriver blade standard: DIN 5264
- Push-in force/pole: 10 N
- Plugging cycles: 25
- Withdrawal force/pole: 8 N
- Insulating material: PBT
- Colour: Orange
- Insulating material group: IIIa
- Insulation resistance: ≥ 108Ω
- Contact material: CuSn
- Layer structure of plug contact: 4-8µm Sn hot-diptinned
- Storage temperature (min.): -25 °C
- Max. relative humidity during storage: 80 %
- Operating temperature (max.): 100 °C
- Temperature range (installation, max.): 100 °C
- Conductor size (min. solid): 0.2 mm²
- Conductor size (min. flexible): 0.2 mm²
- Conductor size (w. plastic collar ferrule): 0.2 mm²
- Conductor size (w. wire end ferrule): 0.2 mm²
- Plug gauge (EN 60999): 2.4 mm x 1.5 mm
- Rated current (min. no. of poles, Tu=20°C): 27 A
- Rated current (min. no. of poles, Tu=40°C): 24 A
- Rated voltage (surge voltage class / pollution degree III/2): 320 V
- Rated voltage (surge voltage class / pollution degree II/2): 400 V
- Rated impulse voltage (surge voltage class/ pollution degree III/3): 4 kV
- Short-time withstand current resistance: 3 x 1s with 100 A
- Rated voltage (usegroup B): 300 V
- Rated current (usegroup B): 15 A
- Wire cross-section AWG (min.): AWG 28
- Rated voltage (usegroup D): 300 V
- Rated current (usegroup D): 15 A
- Wire cross-section AWG (max.): AWG 14
- UL 94 flammability rating: V-0
