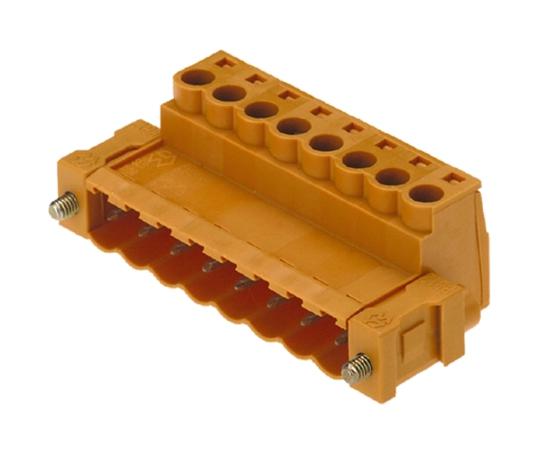

WEIDMULLER 1846270000 PCB male connector
The SLS 5.08/08/180FI SN connector from the OMNIMATE Signal series is a PCB plug-in male connector rated for 400 V and 21.5 A, designed with 8 poles at a 180° orientation. It features a clamping yoke wiring system capable of accommodating a range of conductor sizes up to 3.31 mm, with a height of 15.2 mm and a depth of 22.3 mm. The connector’s body is made from orange PBT, with tin-plated copper contacts ensuring reliable electrical conductivity. Suitable for industrial automation, it supports multiple wiring configurations and testing standards for durability and safety.
WEIDMULLER 1846270000 PCB male connector Specifications:
- Dimensions: Height 15.2 mm, Depth 22.3 mm
- Material: PBT insulating body, copper contacts, tin-plated
- Electrical Ratings: 400 V / 21.5 A (IEC), 300 V / 14 A (UL)
- Number of poles: 8, Pitch: 5.08 mm, 0.2 inch
- Clamping range: max. 3.31 mm, min. 0.13 mm² cross-section
- Temperature Range: Operating 50°C to 100°C, Storage -40°C to 70°C
- Number of wiring cycles: 25, Tightening torque: 0.4 Nm (max)
- Conductor Compatibility: Solid and flexible, AWG 26 to AWG 12, wire ferrules up to 7 mm stripping length
- Flammability: UL 94 V-0, Comparative Tracking Index: >200
- Certifications: IEC, UL, CSA approved, RoHS compliant
Buy the Weidmueller Series SLS 5.08/08/180FI SN: 1846270000
Purchase the Weidmueller Series SLS 5.08/08/180FI SN PCB male connector online today and ensure secure, reliable connections in your industrial automation setups. This durable connector features 8 poles, a clamping yoke system for wire flexibility, and a compact design with a 5.08 mm pitch. Made from high-quality orange PBT with tin-plated copper contacts, it supports multiple wiring configurations, offers excellent temperature resistance, and complies with international safety standards. Perfect for industrial applications needing robust, easy-to-mount connectors.
Order your Weidmueller Series SLS 5.08/08/180FI SN connector today and ensure reliable, high-performance wiring for industrial automation projects.
