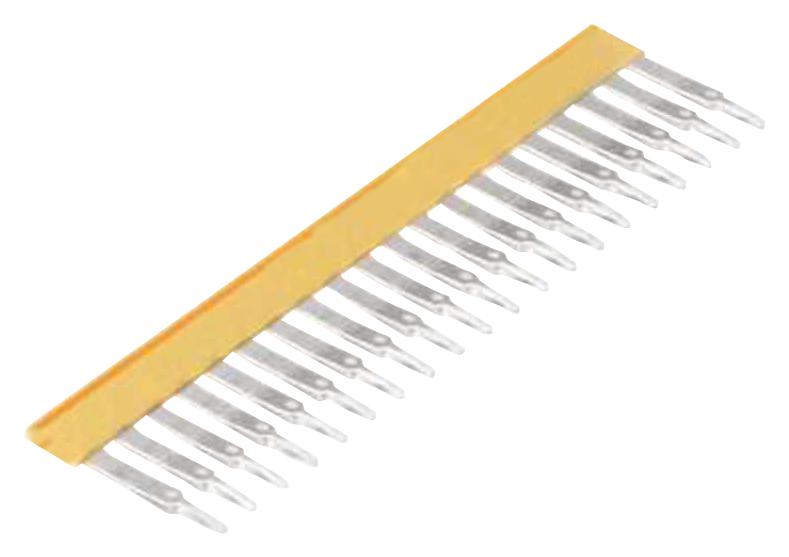

WEIDMULLER 1908960000 Z-series Cross Connector
The Weidmüller ZQV 2.5/20 cross-connector is part of the Z-series and features tension clamp technology, offering a universal contact system suitable for diverse conductor connection types. This design provides a flexible and cost-effective alternative connection method. It's designed for direct mounting onto terminal rails and is ideal for applications requiring reliable and adaptable electrical connections in industrial settings.
Authorized Distributors
Source:Mouser Electronics
Part No:1908960000
Stock:275
Inv Date:06-12-2026
Price: Unit price: $16.4
Buy/RFQ:
Source:Master Electronics
Part No:1908960000
Stock:82
Inv Date:06-11-2026
Price: Unit price: $11.04
Buy/RFQ:
Source:Onlinecomponents.com
Part No:1908960000
Stock:82
Inv Date:06-11-2026
Price: Unit price: $11.04
Buy/RFQ:
Source:TLC Electronics Inc
Part No:1908960000
Stock:0
Inv Date:06-11-2026
Price: Unit price: $9.188
Buy/RFQ:
WEIDMULLER 1908960000 Z-series Cross Connector Specifications:
- Type: ZQV 2.5/20
- Order No.: 1908960000
- Version: Z-series, Cross-connector, For the terminals, No. of poles: 20
- GTIN(EAN): 4032248535293
- Qty.: 20 pc(s).
- Width: 2.8 mm
- Height: 100.3 mm
- Depth: 27.6 mm
- Net weight: 13.785 g
- Width(inches): 0.11 inch
- Height(inches): 3.949 inch
- Depth(inches): 1.087 inch
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: Yellow
- Mounting rail: none
- Installation advice: Direct mounting
- Type of fixing: Plugged
- Pitch in mm (P): 5.1 mm
- Rated current: 24 A
- ETIM 3.0: EC000489
- ETIM 5.0: EC000489
- UNSPSC: 30-21-18-01
- eClass 6.2: 27-14-11-40
- eClass 8.1: 27-14-11-40
- eClass 9.1: 27-14-11-40
- ETIM 4.0: EC000489
- ETIM 6.0: EC000489
- eClass 5.1: 27-14-11-40
- eClass 7.1: 27-14-11-40
- eClass 9.0: 27-14-11-40
