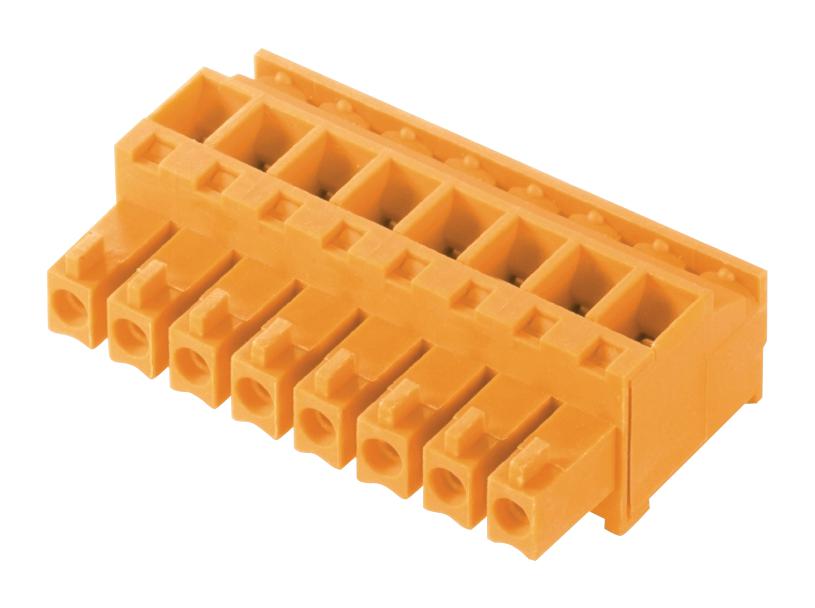

WEIDMULLER 1939820000 female socket connector
This female socket connector from the OMNIMATE Signal series features a clamping-yoke screw system for secure wire connections. It offers three flexible outlet directions—180°, 90°, and 270°—to accommodate various installation requirements. The connector is available in multiple housing styles, including standard, flange with screw, and a patented release latch for tool-free locking. With a pitch of 3.81 mm and compatibility with standard layouts, it supports wire cross-sections from AWG 28 to AWG 16, rated at 300 V and 10 A, making it suitable for diverse industrial applications.
WEIDMULLER 1939820000 female socket connector Specifications:
- Pitch in mm: 3.81 mm
- Pitch in inches: 0.15 inch
- Number of poles: 2
- Wire connection method: Clamping yoke
- Rated voltage: 320 V (IEC), 300 V (UL/CSA)
- Rated current: 17.5 A (IEC), 10 A (UL/CSA)
- Clamping range: 0.08 mm to 1.5 mm
- Wire cross-section: AWG 28 to AWG 16
- Insulating material: PA GF (Polyamide Glass Fiber)
- Color: Orange (RAL 2000)
- Contact resistance: 6.00 mΩ
- Temperature range: -50°C to +120°C
- Flammability rating: UL 94 V0
- Tinned contact surface
- Number of rows: 1
- Tightening torque: 0.2 Nm to 0.25 Nm
- Plugging cycles: 25
- Protection class: IP 20
- Approval standards: IEC 60664-1, IEC 61984, UL 1059
Buy the Buy Weidmueller Female Socket Connector Part Number 1939820000 Online
Secure your wiring installations with the Weidmueller female socket connector. Featuring a 3.81 mm pitch and flexible outlet options, it ensures easy assembly and dependable performance. With an operating temperature range from -50°C to 120°C, rated at 300 V and 10 A, and a robust design, this connector is suitable for diverse industrial and automation applications. Its tinned contact surface and UL/CSA approvals guarantee safety and quality. Purchase online today for fast delivery and professional-grade connection solutions.
Order your Weidmueller Series BC/SC 3.81 1939820000 female socket connector today and ensure a reliable, versatile wiring solution for industrial projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1939820000?
You can click on the BUY or RFQ button to purchase 1939820000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1939820000?
You can download the 1939820000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1939820000?
WEIDMULLER
