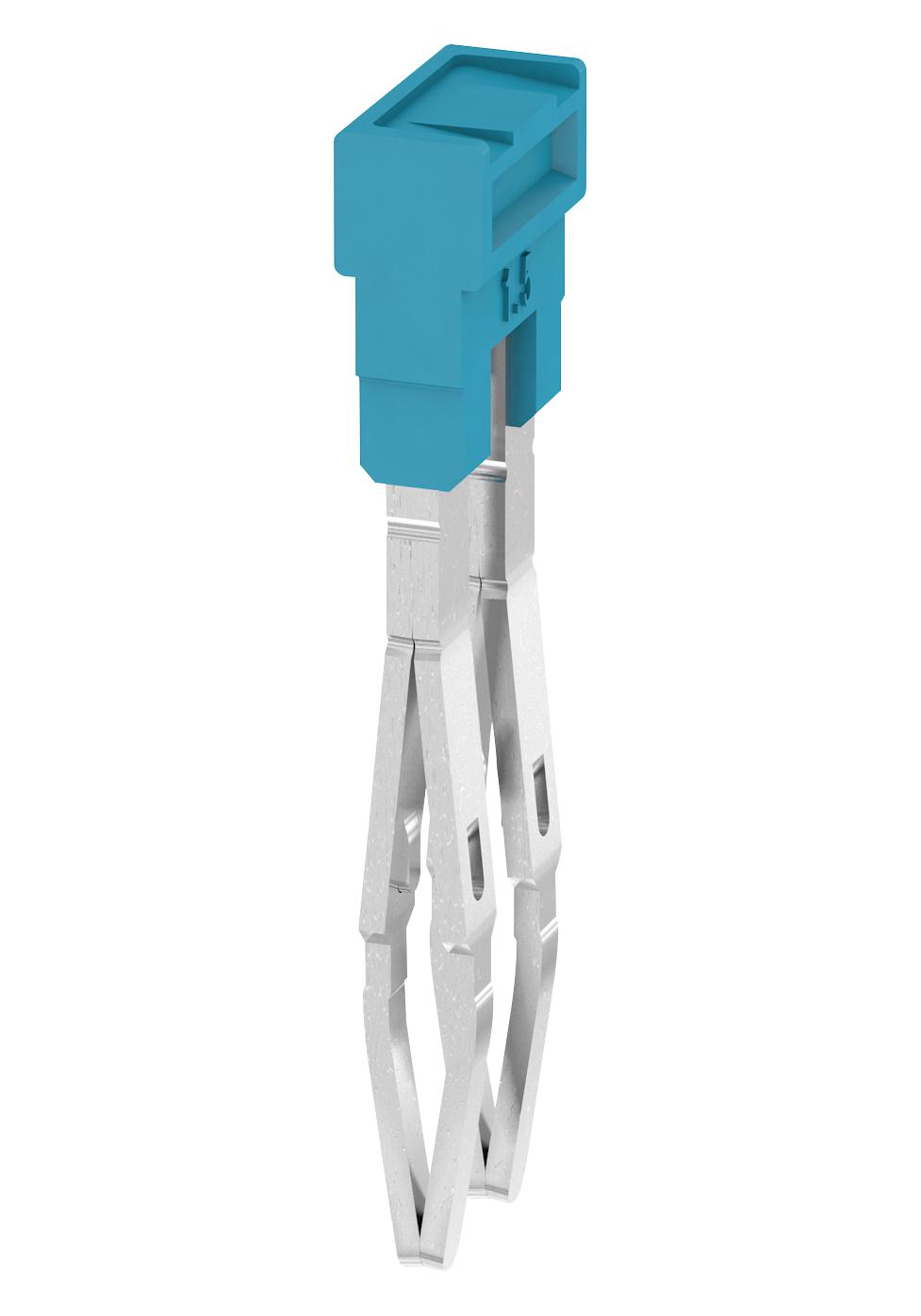

WEIDMULLER 1985530000 Spring Connection Terminal Block
The WEIDMULLER ZQV 1.5N/2 BL terminal block is designed with innovative PUSH IN technology, significantly reducing wiring time and ensuring high conductor pull-out forces. Its Wemid material construction and V-0 flammability rating provide durability and safety. This terminal block is ideal for applications in control cabinets, automation systems, and power distribution, offering a reliable and efficient connection solution. The block's compact size and easy handling make it suitable for a wide range of industrial environments.
WEIDMULLER 1985530000 Spring Connection Terminal Block Specifications:
- Type: ZQV 1.5N/2 BL
- Order No.: 1985530000
- GTIN(EAN): 4050118370423
- Quantity: 60 pc(s).
- Width: 5.5 mm
- Width(inches): 0.217 inch
- Height: 21.9 mm
- Height(inches): 0.862 inch
- Depth: 2.8 mm
- Depth(inches): 0.11 inch
- Net weight: 0.563 g
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: Blue
- Explosion-tested version: Yes
- Type of fixing: Plugged
- Pitch in mm (P): 3.5 mm
- Rated current: 17.5 A
- ETIM 6.0: EC000489
- eClass 9.1: 27-14-11-40
- eClass 6.2: 27-14-11-40
- ROHS: Conform
Buy the 1985530000 WEIDMULLER Spring Connection Terminal Block | myMectronic
Purchase the WEIDMULLER 1985530000 ZQV 1.5N/2 BL terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 1985530000?
You can click on the BUY or RFQ button to purchase 1985530000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1985530000?
You can download the 1985530000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1985530000?
WEIDMULLER
