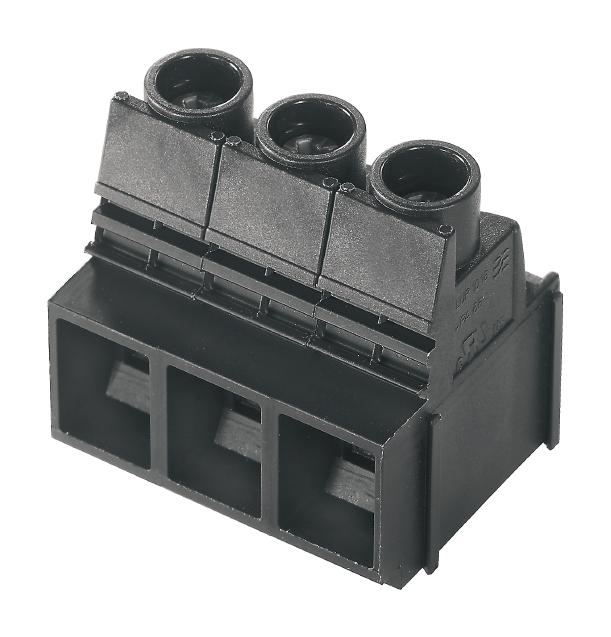

WEIDMULLER 2013900000 PCB Terminal
The Weidmüller LUP 10.16/07/90V 5.0SN BK BX is a high-quality PCB terminal designed for reliable connections in industrial electronics. Featuring a 10.16 mm pitch and offset solder pins, it supports up to 76A and a wire cross-section of 0.5 to 16 mm². Its sturdy clamping yoke connection ensures secure attachment, with a maximum clamping range of 16 mm. Ideal for applications requiring robust and precise wiring, it complies with IEC, UL, and CSA standards, offering long-term durability and efficient assembly in complex electronic systems.
WEIDMULLER 2013900000 PCB Terminal Specifications:
- Pitch: 10.16 mm (0.4 inch)
- Number of poles: 7
- Solder pin length: 5 mm
- Max. clamping range: 16 mm
- Rated voltage: 1000 V (IEC), 600 V (UL/CSA)
- Rated current: 76 A (IEC), 51 A (UL/CSA)
- Wire cross-section: 0.5 - 16 mm² (AWG 22 - AWG 6)
- Dimensions: Width 71.92 mm, Height 36.5 mm, Depth 25.1 mm
- Material: Insulating Wemid (PA), Contact material: Tinned Cu
- Operating temperature: -50°C to +120°C
- Flammability rating: UL 94V-0
- Touch-safe protection: IP20 plugged / IP10 unplugged
- Tinning: 1.5-3 μm Ni / 4-6 μm Sn
- Solder eyelet hole diameter: 1.6 mm ± 0.1 mm
- Tightening torque: 1.2 Nm to 1.5 Nm
- Approvals: IEC, UL, CSA, RoHS compliant
Buy the Weidmueller 2013900000 – Reliable PCB Terminal for Industrial Applications
Order the Weidmueller PCB Terminal now to ensure secure, reliable connections for industrial electronics. Designed with a 10.16 mm pitch and rated for up to 76A, it features a robust clamping yoke for maximum security and easy assembly. Its wide clamping range of 16 mm supports various wire sizes, and the product complies with IEC, UL, and CSA standards for safety and quality. Perfect for manufacturers and technicians seeking durable, high-performance terminal blocks for complex electronic systems. Purchase online today for fast delivery and seamless integration into your projects.
Get Weidmueller 2013900000 today—built for precision, secure connections, and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 2013900000?
You can click on the BUY or RFQ button to purchase 2013900000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2013900000?
You can download the 2013900000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2013900000?
WEIDMULLER
