WEIDMULLER 2014290000 PCB Power Terminal
The PCB terminal provides reliable connections for up to 1000 V and 76 A, suitable for conductor cross-sections from 0.5 to 16 mm². It features a proven clamping yoke connector and a 10.16 mm pitch, ideal for PCB wiring in industrial applications. Designed with a pebble grey tinned surface and a 90° conductor outlet, it ensures secure, easy-to-install connectivity. This terminal supports a maximum of three poles and is suitable for high-current, safety-critical environments, offering a robust and durable connection solution for control panels, automation systems, and power distribution.
WEIDMULLER 2014290000 PCB Power Terminal Specifications:
- Dimensions: Width 31.28 mm, Height 36.5 mm, Depth 25.1 mm
- Material: Wemid (PA), pebble grey, UL 94 V0 flammability rating
- Clamping Range: 0.13 mm² to 16 mm², AWG 22 to AWG 6
- Wire connection method: Clamping yoke, THT solder connection, conductor outlet at 90°
- Solder pin length: 5 mm, dimensions: 12 x 1.2 mm, eyelet hole diameter: 1.6 mm
- Rated Voltage: IEC 1000 V, UL 300 V, CSA 300 V, UL 600 V
- Rated Current: IEC 76 A, UL 58 A, CSA 58 A, maximum 76 A, maximum 12 poles per row
- Operating Temperature: -50°C to +120°C, storage -40°C to +70°C
- Weight: Approx. 28 grams per unit, insulated with tinned copper contacts

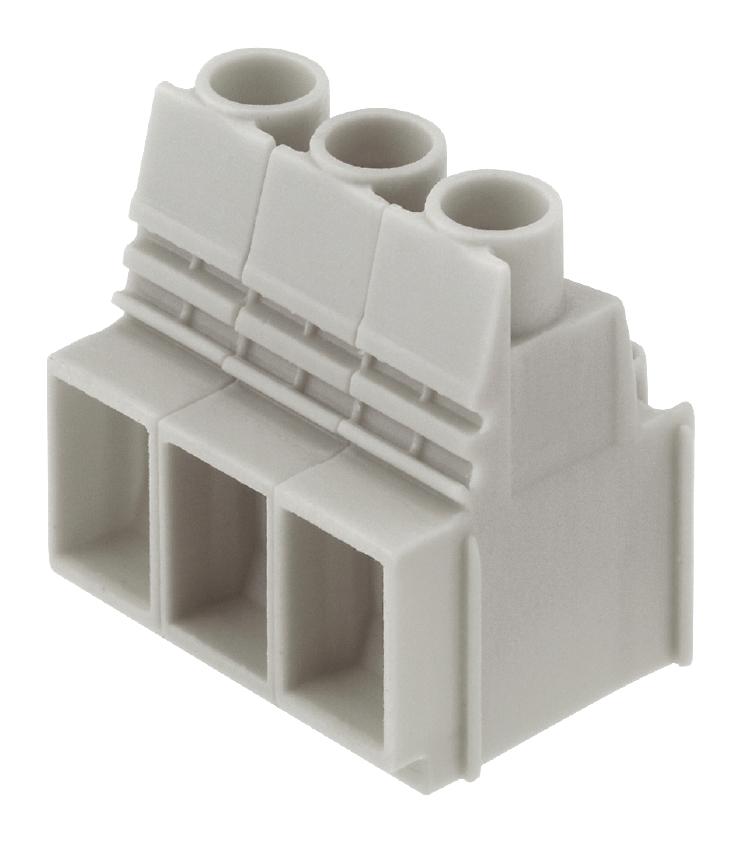

Buy the Buy Weidmuller LUP Series PCB Terminal Part Number 20142 Online
Purchase the Weidmuller LUP PCB power terminal today for reliable, high-current connections in industrial control and power distribution. This three-pole terminal supports conductor cross-sections ranging from 0.5 to 16 mm² and provides a secure clamping yoke connection with a 10.16 mm pitch, suitable for PCB mounting. Its robust design, pebble grey UL 94 V0 rated material, and comprehensive safety ratings make it ideal for automation, power, and control systems needing durable and precise electrical connections. Order online now for fast delivery and quality assurance.
Get Weidmuller LUP 10.16/03/90 5.0SN GY BX today—built for high current and long-lasting industrial power connections.
Frequently Asked Questions
Where can I buy WEIDMULLER 2014290000?
You can click on the BUY or RFQ button to purchase 2014290000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2014290000?
You can download the 2014290000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2014290000?
WEIDMULLER
