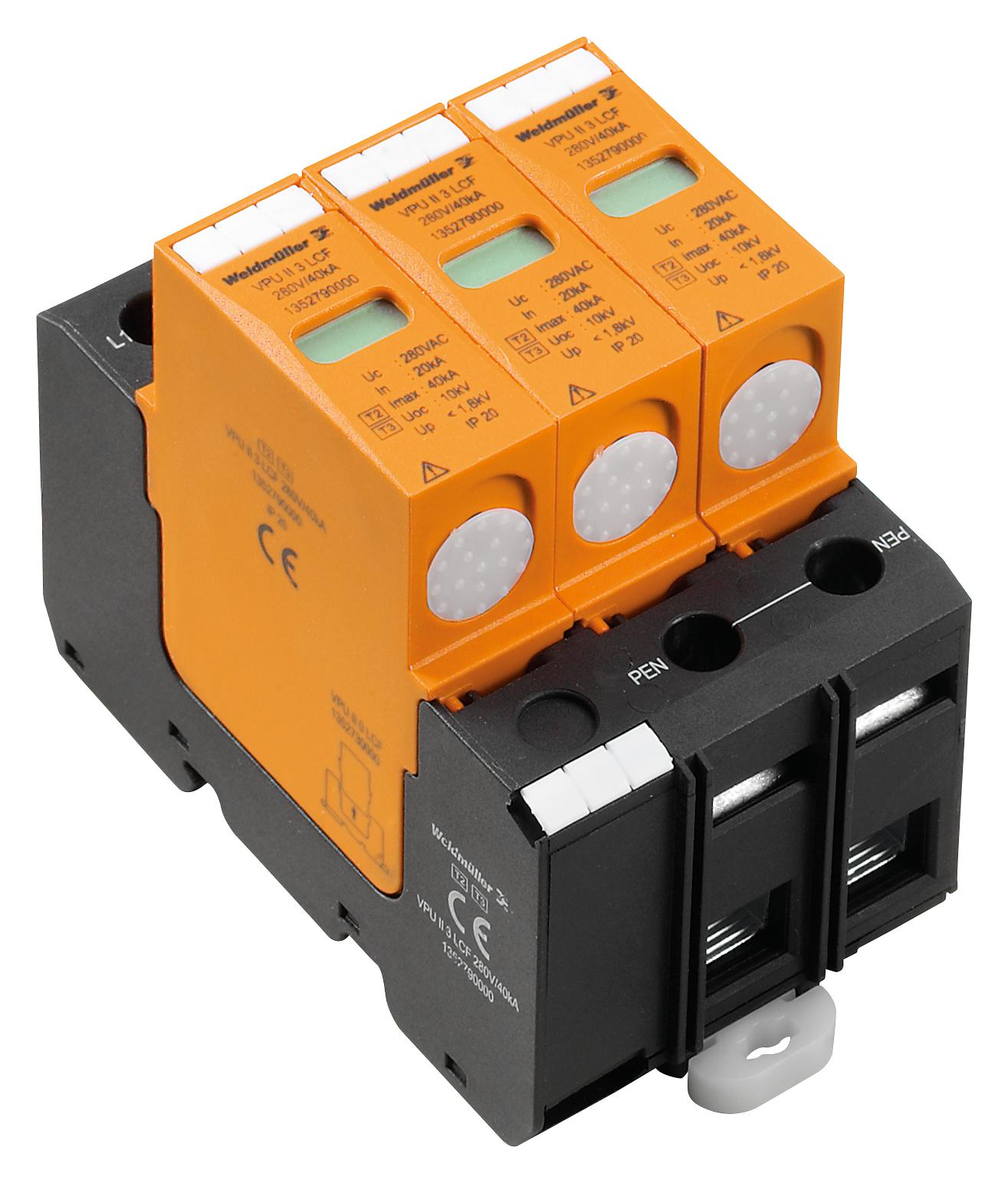

WEIDMULLER 2025580000 Surge Protection Device
The Weidmuller VPU II series surge protective devices effectively minimize interference coupling caused by transient surge voltages, even significantly below the limits prescribed by insulation coordination. These arrestors are technically coordinated, eliminating the need for decoupling between different types. Tested according to IEC 61643-11, they are suitable for installation in power supply systems for the US market according to UL 1449 Ed.4. Weidmuller offers a range of products tailored to various mains network types and voltage levels, ensuring reliable protection for your electrical installations.
WEIDMULLER 2025580000 Surge Protection Device Specifications:
- Delivery Status: This article will no longer be available in the future
- Available Until: 2020-05-01
- Type: VPU II 3WDA L-G 240V
- Order No.: 2025580000
- Version: without telecomm. contact
- GTIN(EAN): 4050118405415
- Quantity: 1pc(s)
- Alternative Product: 2591160000
- Width: 54 mm
- Height: 94 mm
- Depth: 69 mm
- Mounting Dimension - Height: 75 mm
- Width (inches): 2.126 inch
- Height (inches): 3.701 inch
- Depth (inches): 2.717 inch
- Net Weight: 539 g
- Humidity: 5 - 95% rel. humidity
- Operating Temperature, Min: -40 °C
- Storage Temperature, Min: -40 °C
- Storage Temperature: -40 °C...85 °C
- Operating Temperature, Max: 70 °C
- Storage Temperature, Max: 85 °C
- Operating Temperature: -40 °C...70 °C
- Rated Voltage UN: 240 V
- VPR(L/N-PE): 1,000 V
- SCCR: 200 kA
- Category: SPD TYPE 1CA/2CA
- Continuous Voltage UC, Max: 275 V
- Test Voltage (UL 1449): 240 V
- MCOV(L/N-PE): 275 Vac
- In: 20 kA
- Colour: black,orange
- Optical Function Display: green = OK; red = arrester is defective - replace
- Rail: TS 35
- UL 94 Flammability Rating: V-0
- Design: Installation housing; 3TE, Insta IP 20
- Protection Degree: IP20
- Segment: Power distribution
- Pollution Severity: 2
- Surge Voltage Category: III
- Discharge Current Imax(8/20µs) wire-PE: 40 kA
- Follow-on Current Extinguishing Capability Ifi: Not available due for technical reasons
- Low Voltage Network: TN, IT,TT -> L-PE(U0≤ 200 V)
- Protection Level Upat IN(L/N-PE): ≤ 1.25 kV
- Requirements Class, acc. to EN 61643-11: T2
- Short-circuit Current Rating ISCCR: 25 kA
- Voltage Type: AC
- Discharge Current In(8/20µs) wire-PE: 20 kA
- Fuse: 125 A gL > (if back up fuse > 125 A)
- Max. Continuous Voltage, Uc (AC): 275 V
- Requirements Category acc. to IEC 61643-11: Type II
- Response Time: ≤ 25 ns
- Signalling Contact: No
- Tightening Torque, Min: 2 Nm
- Wire Connection Cross Section AWG, Min: AWG 14
- Wire Cross-section, Solid, Min: 4 mm²
- Wire Connection Cross-section, Finely Stranded, Min: 2.5 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Min: 2.5 mm²
- Connection Cross-section, Stranded, Min: 4 mm²
- Stripping Length, Rated Connection: 15 mm
- Tightening Torque, Max: 3 Nm
- Wire Connection Cross Section AWG, Max: AWG 0
- Wire Cross-section, Solid, Max: 16 mm²
- Wire Connection Cross Section, Finely Stranded, Max: 25 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Max: 25 mm²
- Connection Cross-section, Stranded, Max: 50 mm²
