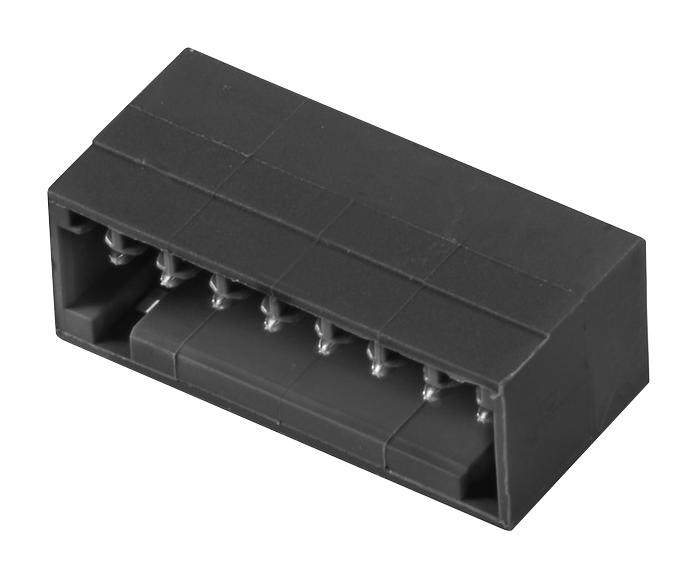

WEIDMULLER 2439850000 Male Header Connector
The OMNIMATE Signal series SL 2.50 male header is a high-quality connector designed for wave soldering with a pitch of 2.50 mm. It features 12 poles, a 90° outgoing elbow, and a closed housing variant suitable for PCB mounting. Made from durable insulating PA 66 with a tinned copper alloy contact surface, it supports rated voltages of 320V IEC and 150V UL, with a rated current of 6A. Its compact dimensions and robust construction make it ideal for reliable electrical connections in industrial and electronic applications.
WEIDMULLER 2439850000 Male Header Connector Specifications:
- Pitch in mm: 2.50 mm
- Number of poles: 12
- Solder pin length: 3.2 mm
- Solder eyelet diameter: 1.3 mm
- Width: 31.9 mm, Height: 11.3 mm, Depth: 10.1 mm
- Material: PA 66, contact: copper alloy, tin-plated
- Operating temperature: -40°C to 105°C
- Rated voltage IEC: 320V, UL: 150V
- Rated current: 6A IEC, 5A UL
- Touch-safe protection: IP00
- Number of solder pins per pole: 1
- Solder pin dimensions: 0.8x0.8 mm
- Solder eyelet hole diameter: 1.3 mm
- UL and CSA approved
- Color: Black (RAL 9011), flammability rating V0
- Compliance: IEC 61984, UL, CSA, IPC
Buy the Weidmuller Series SL 2.50 Male Header: 2439850000
Secure your electronic projects with the Weidmuller Series SL 2.50 male header. Designed for wave soldering, it offers 12 poles with a 2.50 mm pitch, robust construction, UL and CSA approvals, and precise dimensions. Made from high-quality materials like PA 66 plastic and copper alloy, it ensures durability and reliable electrical performance in demanding environments. Its compact size and IP00 touch-safe protection make it ideal for industrial applications, providing seamless assembly and long-term reliability. Purchase online today to enhance your electronic system’s connectivity and performance.
Buy Weidmuller SL 2.50/12/90G connector now and experience reliable connections with excellent wave soldering compatibility for industrial electronics.
Frequently Asked Questions
Where can I buy WEIDMULLER 2439850000?
You can click on the BUY or RFQ button to purchase 2439850000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2439850000?
You can download the 2439850000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2439850000?
WEIDMULLER
