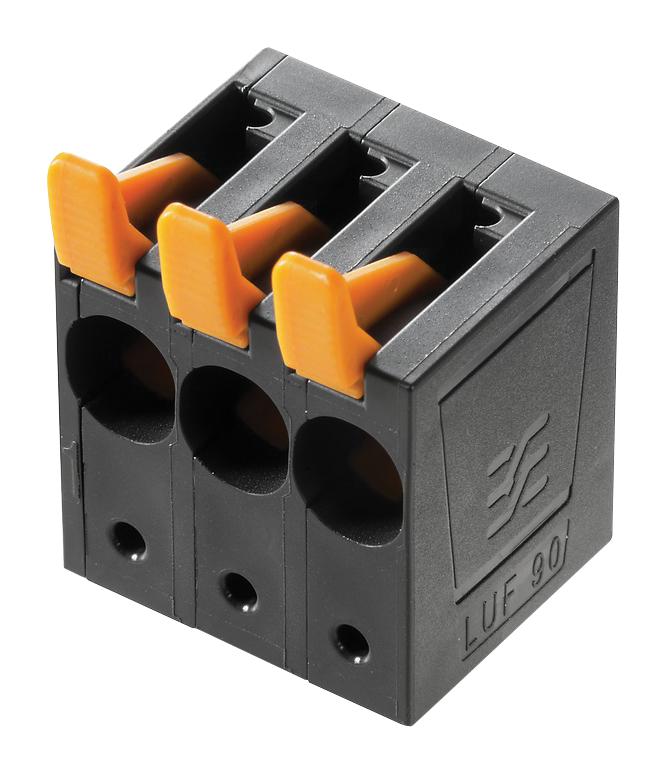

WEIDMULLER 2453700000 Industrial PCB Terminal
The Weidmüller OMNIMATE Power series LU terminal is a high-performance PCB connection component designed for precision and durability in industrial applications. It features a push-in connection system for conductor cross-sections up to 16 mm², ensuring fast, tool-free installation with secure contact safety. The terminal includes integrated test points, a 90° conductor outlet, and is made from demarc cream-colored Wemid (PA) insulating material rated V0 for flammability. Suitable for various wire types, it supports robust electrical connectivity under demanding conditions, with broad certifications including UL and IEC standards, making it ideal for control, automation, and distribution systems.
WEIDMULLER 2453700000 Industrial PCB Terminal Specifications:
- Type: PCB terminal, 10.00 mm, 3 poles, 90° outlet, Solder pin length: 5 mm
- Material: Wemid (PA), Black, V0 rated, Insulation resistance > 10^6 Ω
- Dimensions: Pitch 10 mm, Solder pin diameter 1.2 mm, eyelet hole diameter 1.6 mm
- Rated voltage: 600 V / 1000 V, Rated current: 58 A for IEC, 76 A for UL, Max conductor cross-section: 16 mm² or AWG 6
- Clamping range: 0.5 mm² to 16 mm² for solid, stranded, flexible wires, with or without ferrules
- Operating temperature: -40°C to 120°C, Storage temperature: -25°C to 55°C, Max humidity: 80%
- UL flammability rating: V0, Certifications: UL, IEC, RoHS, Approvals: cURus, CSA
- Wire connection: Push-in with actuator, THT soldering, conductor outlet direction: 90°, integrated test point
- Solder pin dimensions: 1.2 mm diameter, Length: 5 mm, Soldering parameters: single wave or double wave profiles
Buy the Weidmüller LUF 10.00/03/90V 5.0SN BK BX – Reliable PCB Terminal for Industrial Applications
Purchase the Weidmüller PCB terminal online today for your industrial automation needs. It offers quick push-in connections, secure contact safety, and test points for troubleshooting. Designed for conductor cross-sections up to 16 mm², it ensures reliable electrical contact and durability under demanding conditions. Ideal for control panels, distribution boards, and automation systems, this terminal guarantees high performance, easy installation, and compliance with international standards. Order now to enhance your system’s connectivity with trusted quality and fast shipping options.
Get Weidmüller LUF 10.00/03/90V 5.0SN BK BX today—built for high reliability, easy connection, and long-lasting performance in your automation projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 2453700000?
You can click on the BUY or RFQ button to purchase 2453700000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2453700000?
You can download the 2453700000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2453700000?
WEIDMULLER
