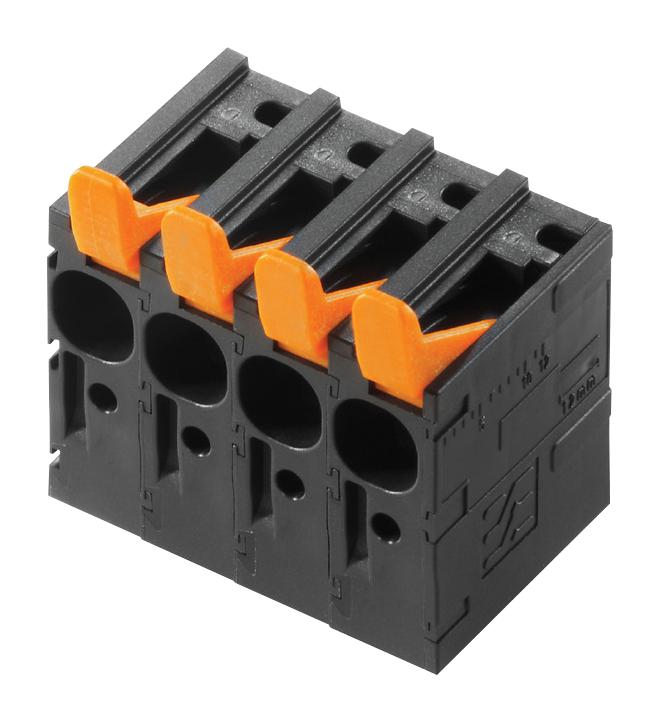

WEIDMULLER 2472110000 Power PCB Terminal Block
The Weidmüller OMNIMATE Power series LL LLF 7.50/05/90V 5.0SN BK BX is a robust PCB terminal block designed for demanding power electronics applications. It offers a direct and secure connection for high current and voltage requirements, making it ideal for solar inverters, frequency converters, servo-controllers, and power supplies. The block features a PUSH IN connection with an actuator, a clamping range of 0.25-6 mm², and is suitable for a wide range of conductor types. Its compact design and reliable performance ensure efficient and safe power distribution in industrial environments.
WEIDMULLER 2472110000 Power PCB Terminal Block Specifications:
- Type: LLF 7.50/05/90V 5.0SN BK BX
- Order No.: 2472110000
- Version: PCB terminal, 7.50 mm, No. of poles: 5, 90°, Solder pin length (l): 5 mm, Black, PUSH IN with actuator, Clampingrange, max. : 6 mm², Box
- GTIN(EAN): 4050118550115
- Qty.: 50pc(s).
- Product data (IEC): 1000 V / 41 A / 0.5 - 6 mm²
- Product data (UL): 600 V/35 A/AWG 24 - AWG 8
- Packaging: Box
- Net weight: 18.014 g
- Product family: OMNIMATE Power - series
- Mounting: onto the PCB
- Connection type: THT solder connection
- Pitch (P) in mm: 7.5 mm
- No. of poles: 5
- Solderpin dimensions: d = 1.2 mm
- Solder eyelet hole diameter tolerance(D): + 0,1 mm
- Strippinglength: 12 mm
- L1 in inches: 1.18 inch
- Touch-safe protection: acc. to DIN VDE 57 106
- Wire connection method: PUSH IN with actuator
- Conductor outlet direction: 90°
- Pitch (P) in inches: 0.295 inch
- Solderpin length(l): 5 mm
- Solder eyelet hole diameter(D): 2 mm
- Number of solderpinsperpole: 1
- L1 in mm: 30 mm
- Insulatingmaterial: Wemid(PA)
- Colour: Black
- Insulatingmaterialgroup: I
- UL 94 flammability rating: V-0
- Layer structure of solder connection: 4-10µSn matt
- Storage temperature,min.: -40 °C
- Max. relative humidityduringstorage: 80 %
- Operating temperature, max.: 120 °C
- Storage temperature,max.: 85 °C
- Operatingtemperature,min.: -40 °C
- Clampingrange,min.: 0.25 mm²
- Wire connection cross section AWG, min.: AWG 24
- Solid,min.: H05(07)V-U 0.5 mm²
- Flexible,min.: H05(07)V-K 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min: 0.25 mm²
- Clampingrange,max.: 6 mm²
- Wire connection cross section AWG, max.: AWG 8
- Solid,max.: H05(07)V-U 6 mm²
- Flexible,max.: H05(07)V-K 6 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.: 6 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.: 6 mm²
- Rated current, max. no. of poles (Tu=20°C): 35 A
- Rated current, max. no. of poles (Tu=40°C): 30 A
- Rated voltage for surge voltage class / pollution degree III/2: 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 8 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3: 8 kV
- Rated current, min. no. of poles (Tu=20°C): 41 A
- Rated current, min. no. of poles (Tu=40°C): 41 A
- Rated voltage for surge voltage class / pollution degree II/2: 1,000 V
- Rated voltage for surge voltage class / pollution degree III/3: 1,000 V
- Rated voltage(UsegroupB): 600 V
- Rated voltage(usegroupD): 600 V
- Rated current(usegroupC): 35 A
- Wire cross-section, AWG, min.: AWG 24
- Certificate No. (cURus): E60693
- Rated voltage(usegroupC): 600 V
- Rated current(usegroupB): 35 A
- Rated current(usegroupD): 5 A
- Wire cross-section, AWG, max.: AWG 8
