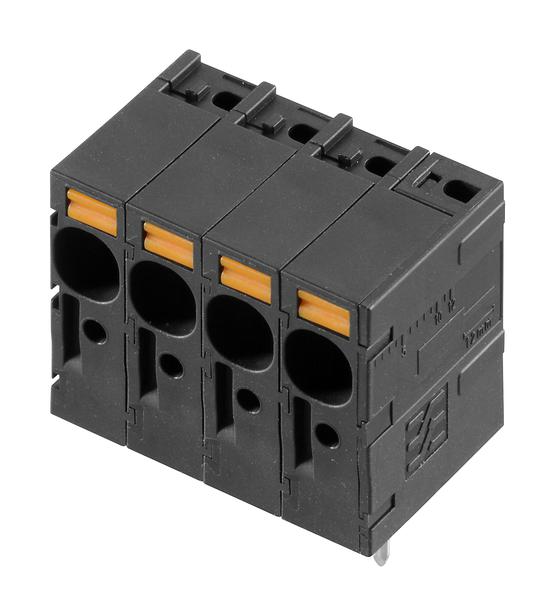

WEIDMULLER 2473100000 Power PCB Terminal
The OMNIMATE Power series LLFS connector is a robust, high-current PCB terminal designed for power electronics applications such as solar inverters, frequency converters, servo controllers, and power supplies. Featuring 12 poles, 7.50 mm pitch, and a solder pin length of 5 mm, it ensures secure and reliable connections without actuators. Made with tinned copper and UL 94V-0 flammability-rated PA insulation, it offers excellent electrical and mechanical stability, with a maximum clamping range of 6 mm for versatile wiring options. Suitable for IEC, UL, and CSA standards with rated currents up to 41A and voltage up to 1,000 V.
WEIDMULLER 2473100000 Power PCB Terminal Specifications:
- Number of poles: 12
- Pitch: 7.50 mm (0.295 inch)
- Solder pin length: 5 mm
- Dimensions: Width 91 mm, Height 30.56 mm, Depth 20.05 mm
- Material: Insulating Wemid (PA), contact material: Tinned copper
- Flammability rating: UL 94V-0
- Rated current: 41A (IEC), 37A (UL/CSA)
- Rated voltage: 1000 V (IEC, UL), 600 V (CSA)
- Max clamping range: 6 mm
- Wire connection method: PUSH IN without actuator
- Operating temperature: -40°C to 120°C
- Solder eyelet hole diameter: 2 mm
- Solder pin dimensions: d=15 mm
- Storage temperature: -40°C to 70°C
- Connection cross-section: min 0.25 mm², max 6 mm²
- Cable types: solid and flexible wires, ferrules compatible
- Certification: UL, IEC, CSA standards
Buy the Weidmueller Series LL Power PCB Terminal: 2473100000
Purchase your Weidmueller Series LLFS 7.50/12/90V 5.0SN BK BX today for dependable, high-current PCB connections perfect for power electronics, solar inverters, and frequency converters. Designed with 12 poles, 7.50 mm pitch, and rated for up to 41A at 1000 V, it provides secure push-in connection without actuators. Made from thermally stable, UL flame-rated materials, it ensures safety and durability in demanding electrical environments. Ideal for engineers and technicians seeking reliable power distribution and flexible wiring options in complex systems.
Order your Weidmueller Series LLFS 7.50/12/90V 5.0SN BK BX high-current connector today and ensure reliable power connections in your electronics projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 2473100000?
You can click on the BUY or RFQ button to purchase 2473100000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2473100000?
You can download the 2473100000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2473100000?
WEIDMULLER
