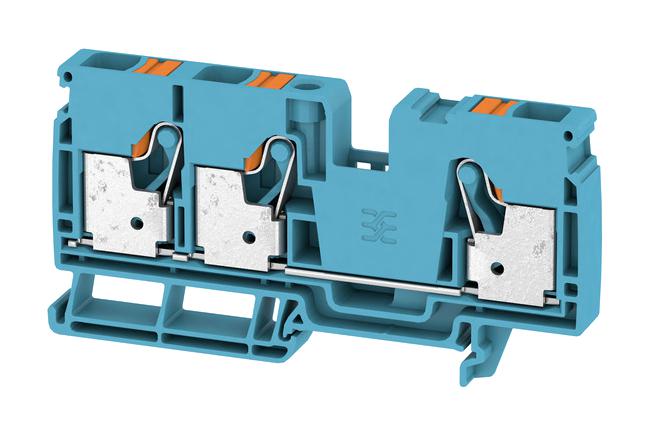

WEIDMULLER 2490510000 Terminal Block
The A3C 10 BL is a high-quality terminal block featuring Push-In technology for quick wiring and high conductor pull-out forces. Its 10 mm width makes it suitable for compact control panel applications, supporting up to 57A and 1000V, with a robust blue Wemid body and orange operational elements made from UL 94 V-0 rated material. The terminal block's dimensions are approximately 102 mm high, 51.5 mm deep, and 10 mm wide, designed for ease of installation with TS 35 rails, offering reliable electrical connection in industrial automation environments.
WEIDMULLER 2490510000 Terminal Block Specifications:
- Width: 10 mm (0.394 inch)
- Height: 102 mm (4.016 inch)
- Depth: 51.5 mm (2.028 inch), including DIN rail
- Material: Wemid, blue body with orange operational elements
- Flammability: UL 94V-0
- Rated Voltage: 1000 V
- Rated Current: 57 A
- Clamp Range: Max. 10 mm, Min. 0.5 mm with stranded wire connection
- Wire Connection: PUSH IN technology, compatible with AWG 20 to AWG 6 (max.), solid or finely stranded wires
- Connection Direction: Top
- Number of Connections: 3
- Stripping Length: 18 mm
- Temperature Range: –60°C to +130°C, continuous operating temp. min. 60°C, max. 130°C
- Standards: IEC 60947-7-1, UL Conform
Buy the Weidmueller Series A3C 10 BL: Terminal Block
Discover the reliable and easy-to-install Weidmueller Series A3C 10 BL terminal block, featuring Push-In technology for fast wiring and secure connections. Designed for industrial automation, it supports up to 57A and 1000V, with a compact 10 mm width, supporting high currents and voltages. Its robust blue Wemid housing with UL 94 V-0 rating ensures safety and durability in demanding environments. Compatible with TS 35 rails, this terminal offers quick insertion, high pull-out forces, and a wide range of wiring options, making it ideal for control panels and automation systems.
Order your Weidmueller Series A3C 10 BL terminal block today and give your projects the dependable quality they deserve with quick Push-In wiring.
Frequently Asked Questions
Where can I buy WEIDMULLER 2490510000?
You can click on the BUY or RFQ button to purchase 2490510000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2490510000?
You can download the 2490510000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2490510000?
WEIDMULLER
