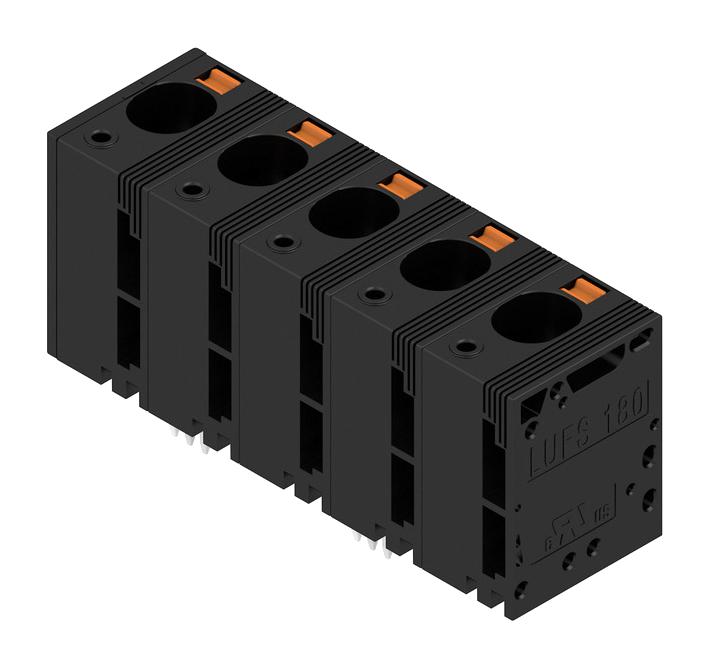

WEIDMULLER 2492240000 Power Terminal Block
The Weidmuller OMNIMATE Power series LU terminal block provides a sturdy, direct connection for demanding power electronics applications like solar inverters, frequency converters, and power supplies. It boasts a robust design with a PUSH IN connection mechanism, accommodating conductor cross-sections from 0.5 mm² to 16 mm². The terminal block is rated for high voltage and current, making it suitable for critical power distribution systems. Its touch-safe design enhances safety during operation and maintenance.
WEIDMULLER 2492240000 Power Terminal Block Specifications:
- Type: LUFS 15.00/05/180V 5.0SN BK BX
- Order No.: 2492240000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 5
- Solder pin length (l): 5 mm
- GTIN(EAN): 4050118564730
- Qty.: 20pc(s).
- Product data (IEC): 1000 V / 76 A / 0.5 - 16 mm²
- Product data (UL): 600 V/57 A/AWG 18 - AWG 4
- Width: 71.58 mm
- Height: 36.3 mm
- Height of lowest version: 31.3 mm
- Depth (inches): 0.972 inch
- Width(inches): 2.818 inch
- Height(inches): 1.429 inch
- Depth: 24.7 mm
- Net weight: 51.601 g
- Pitch in mm(P): 15 mm
- Solderpin length(l): 5 mm
- Solder eyelet hole diameter(D): 1.7 mm
- Number of solderpinsperpole: 2
- Strippinglength: 18 mm
- L1 in inches: 2.362 inch
- Touch-safe protection: DIN VDE 57 106
- Wire connection method: PUSH IN without actuator
- Conductor outlet direction: 180°
- Pitch in inches(P): 0.591 inch
- Fitted bycustomer: No
- Solderpin dimensions: d = 1.2 mm, Octagonal
- Solder eyelet hole diameter tolerance(D): + 0,1 mm
- Screwdriver blade: 0.8 x 4.0
- L1 in mm: 60 mm
- Insulatingmaterial: Wemid(PA)
- Colour of operational elements: orange
- Comparative Tracking Index (CTI): ≥ 600
- UL 94 flammabilityrating: V-0
- Storage temperature,min.: -40 °C
- Operating temperature, min.: -40 °C
- Colour: black
- Material of operational elements: PA4T GF
- Insulatingmaterialgroup: I
- Insulation strength: ≥ 108Ω
- Contact material: E-Cu
- Storage temperature,max.: 70 °C
- Operating temperature, max.: 120 °C
- Clampingrange,min.: 0.5 mm²
- Clampingrange,max.: 16 mm²
- Wire connection cross section AWG, min.: AWG 18
- Wire connection cross section AWG, max.: AWG 4
- Solid,min. H05(07)V-U: 0.5 mm²
- Solid,max. H05(07)V-U: 16 mm²
- Stranded,min. H07V-R: 10 mm²
- Stranded,max. H07V-R: 16 mm²
- Flexible,min. H05(07)V-K: 0.5 mm²
- Flexible,max. H05(07)V-K: 16 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.: 16 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.: 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.: 16 mm²
- Rated current, min. number of poles (Tu=20°C): 76 A
- Rated current, min. number of poles (Tu=40°C): 76 A
- Rated voltage for surge voltage class / pollution degree II/2: 1,000 V
- Rated voltage for surge voltage class / pollution degree III/3: 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2: 8 kV
- Rated current, max. number of poles (Tu=20°C): 76 A
- Rated current, max. number of poles (Tu=40°C): 76 A
- Rated voltage(UsegroupB/CSA): 600 V
- Rated voltage(UsegroupD/CSA): 600 V
- Rated current(UsegroupC/CSA): 57 A
- Wire cross-section, AWG, min.: AWG 18
- Max. clamping range: 16 mm²
