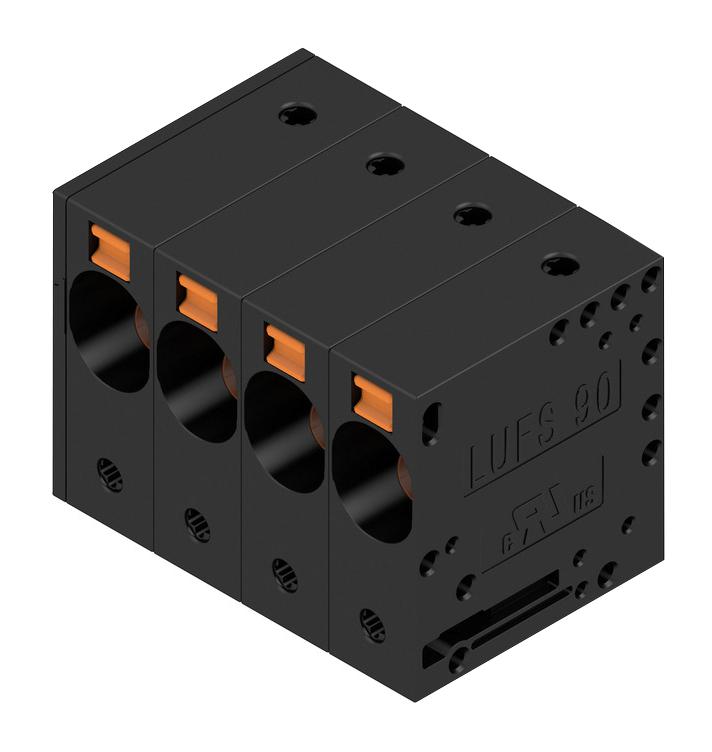

WEIDMULLER 2500470000 PCB Terminal
This high-performance PCB terminal features a PUSH IN connection system suitable for conductor cross-sections up to 16 mm². It offers fast, tool-free connection using pushers for opening the contact point or via direct plug-in method, ensuring secure connections. The terminal includes an integrated test point for easy testing with PS 2.0 test plugs and has increased derating reserves due to special insulating material. Designed for PCB mounting with 4 poles, it ensures reliable electrical and mechanical connection, meeting IEC and UL safety standards. Ideal for industrial automation and power electronics applications.
WEIDMULLER 2500470000 PCB Terminal Specifications:
- Type: Printed circuit board terminal
- Number of Poles: 4
- Width: 41.8 mm (1.646 inch)
- Height: 35 mm (1.378 inch)
- Depth: 28.55 mm (1.124 inch)
- Solder pin length: 5 mm
- Contact Material: Copper alloy
- Insulating Material: Wemid (PA), color black
- Flammability Rating: UL 94 V-0
- Rated Voltage IEC: 1000 V
- Rated Current IEC: 76 A
- UL Rated Voltage: 600 V
- UL Rated Current: 53 A
- Clamping Range: 0.5 mm² to 16 mm²
- Wire Cross-Section: AWG 18 to AWG 4
- Operating Temperature Range: -40°C to 120°C
- Storage Temperature Range: -40°C to 70°C
- Solder eyelet hole diameter: 1.6 mm
- Solder pin dimensions: d=1.2 mm, octagonal
- Poles Fitted by Customer: No
- Material of operational elements: PAAT GF, orange
- Certifications: IEC, UL, RoHS compliant
- Connection Method: PUSH IN without actuator
- Pitch: 10 mm (0.394 inch)
Buy the Buy Weidmuller PCB Terminal Part Number 2500470000 Online
Purchase the Weidmuller PCB terminal model 2500470000 online for reliable, tool-free connection up to 16 mm². Its secure PUSH IN system ensures fast, tool-less wiring and robust contact integrity, ideal for automation and power distribution. Equipped with test points for easy diagnostics and compliant with IEC and UL safety standards, this four-pole terminal provides high current capacity and excellent temperature resistance. Order now to enhance your electrical connections with durable, high-quality components designed for demanding industrial environments.
Get Weidmuller 2500470000 today—built for secure connections, durability, and quick assembly in industrial power electronics.
