WEIDMULLER 2500490000 PCB Terminal
The PCB terminal features a high-performance push-in connection system for conductor cross-sections up to 16 mm², ensuring fast and secure connections without tools. Its innovative design includes a secure contact point, integrated test points for easier testing, and increased derating reserves using WEMID insulating material. Suitable for use in industrial control and automation applications, it supports 90° outlet direction, and is compatible with wire cross-sections ranging from AWG 18 to AWG 4. It’s rated for up to 1000 V and 76 A, with robust UL, IEC, and CSA certifications.
WEIDMULLER 2500490000 PCB Terminal Specifications:
- Width: 61.8 mm (2.433 inch)
- Height: 35 mm (1.378 inch)
- Depth: 28.55 mm (1.124 inch)
- Net weight: 57.69 g
- Number of poles: 6
- Pitch: 10 mm (0.394 inch)
- Solder pin length: 5 mm
- Solder pin diameter: 1.2 mm, octagonal
- Solder eyelet hole diameter: 1.6 mm (+0.1 mm tolerance)
- Wire connection: PUSH IN, no actuator
- Clamping range: 0.5 mm to 16 mm
- Rated voltage: 1000 V (IEC), 600 V (UL/CSA)
- Rated current: 76 A (IEC), 53 A (UL/CSA)
- Operating temperature: -40°C to +120°C
- Insulating material: Wemid (PA), black, CTI >600
- Flammability rating: UL 94 V0
- Contact material: Copper (ECu)
- Soldering profile: Compatible with wave soldering, max 260°C
- Material of operational elements: PA, orange
- Touch-safe protection: IP20 (plugged), IP10 (unplugged)
- Certification: RoHS, Conforms to IEC, UL, CSA standards

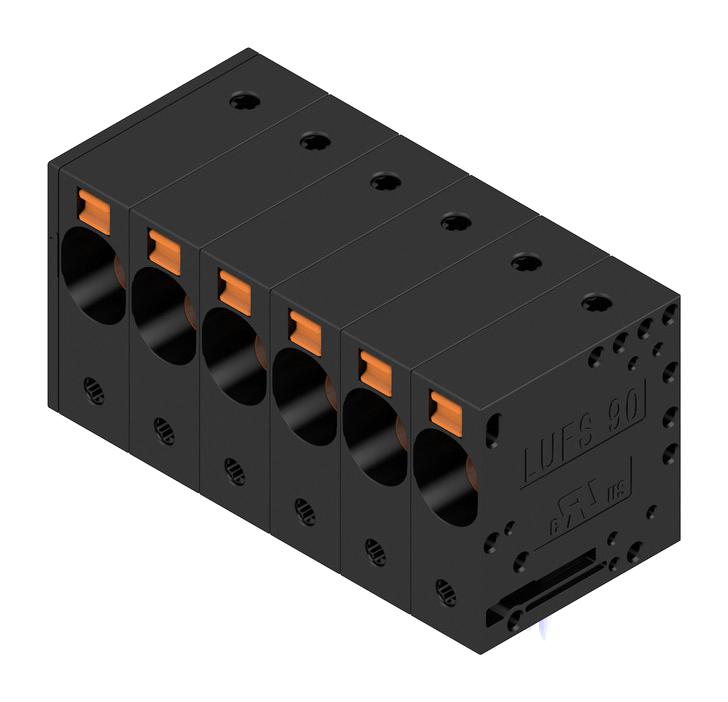

Buy the Weidmueller LUFS 10.00/06/90V 5.0SN – Reliable PCB Terminal for Industrial Applications
Order the Weidmueller PCB terminal online today for reliable and secure conductor connections up to 16 mm². Designed for industrial automation, it features push-in wiring for fast installation without tools, integrated test points for easy testing, and high ratings for voltage and current. Its robust construction with UL, IEC, and CSA certifications ensures operational safety and durability across various industrial environments. Perfect for control panels, automation systems, and wiring harnesses, it guarantees quick, secure, and maintenance-friendly connections in demanding settings.
Get Weidmueller LUFS 10.00/06/90V 5.0SN today—built for precision, secure connections, and long-lasting durability.
