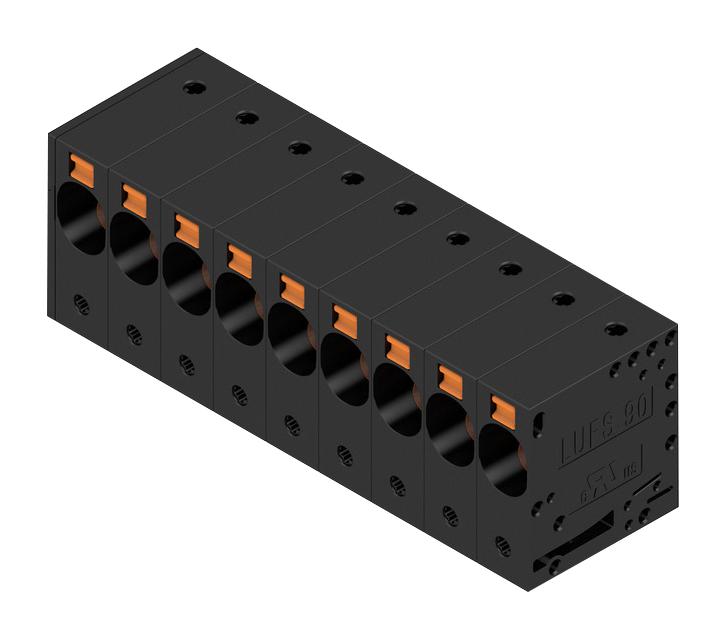

WEIDMULLER 2500520000 PCB Terminal
This high-performance PCB terminal features a PUSH IN connection system capable of handling conductor cross-sections up to 16 mm². It allows rapid, tool-free connections via pushers or direct plug-in, ensuring secure contact with the 'Connection Safety Concept.' Equipped with integrated test points for PS 2.0 test plug and upper side access, it supports increased derating reserves thanks to Weidmüller’s insulating materials. Designed for reliable, maintenance-friendly electrical connections, it suits industrial automation and control systems, emphasizing safety, ease of installation, and durability in demanding environments.
WEIDMULLER 2500520000 PCB Terminal Specifications:
- Type: Printed circuit board terminal, 10.00 mm, 9 poles, solder pin length 5 mm, black, PUSH IN connection system without actuator
- IEC rated voltage: 1000 V, current: 76A, Clamping range: 0.5 mm² - 16 mm², Solder eyelet hole diameter: 1.6 mm
- UL rated voltage: 600 V, current: 53A, Wire cross-section: AWG 18 to AWG 4, Slot: Octagonal with 2 solder pins per pole
- Material: Insulating Wemid (PA), operational elements: PAAT GF, Flammability: UL 94 V0, CTI >600, Insulation strength: 210°C
- Dimensions: Width 91.8 mm, Height 35 mm, Depth 28.55 mm, Net weight 86.49 g
- Conductor outlet direction: 90°, Solder pin length: 5 mm, Max clamping range: 16 mm, Operating temp: -40°C to 120°C
- Rated impedance and standards compliance: IEC 60947-7-4, CSA, UL, with detailed approval and certification documentation
- Approvals include RoHS, conformity to IPC standards, eClass codes 27-44-0401, and other industrial protocols
- Compatible with various conductor types including solid, stranded, flexible, with ferrules per DIN 46228 specifications
- Manufactured and tested according to international standards ensuring high reliability and safety for control panels and power electronics
Buy the Weidmueller Series LUFS 10.00/09/90V 5.0SN BK BX
Secure your electrical connections with our Weidmueller Series LUFS 10.00/09/90V 5.0SN BK BX PCB terminal. Designed for fast, tool-free installation, it supports conductor cross-sections up to 16 mm². Features include integrated test points for easy testing, a robust PUSH IN connection system, and durable insulation materials for increased derating reserves. Ideal for industrial automation, power distribution, and control systems, this terminal guarantees safety, reliability, and efficient wiring in demanding environments. Purchase online now for a seamless, dependable solution that enhances your projects’ performance.
Order your Weidmueller Series LUFS 10.00/09/90V 5.0SN BK BX high-current PCB terminal today and give your projects the dependable quality they deserve.
