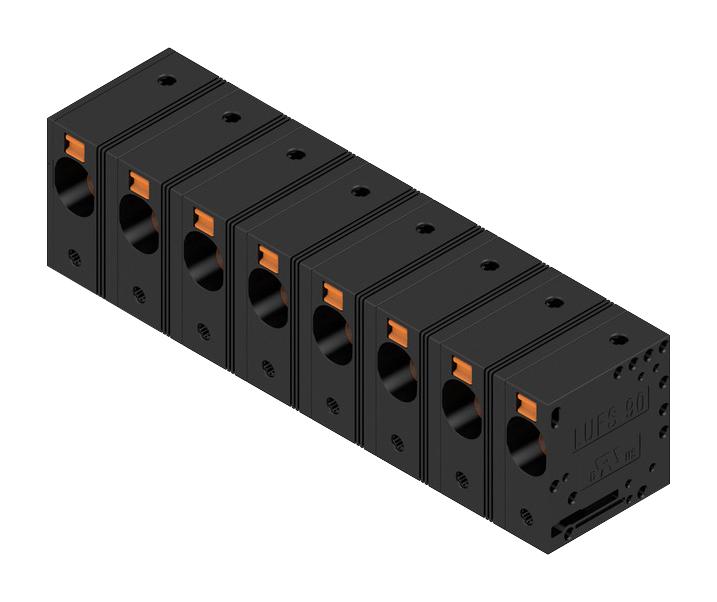

WEIDMULLER 2500610000 Power Connector Terminal
The LUFS 15.00/08/90V 5.0SN BK BX is a robust power connector series designed for high current and voltage applications in power electronics such as solar inverters, frequency converters, servo controllers, and power supplies. These printed circuit board terminals feature 8 poles with a 15 mm pitch, 90° outlet direction, and a solder pin length of 5 mm. Made from flame-retardant Wemid (PA), they offer IP20 protection when plugged in. Suitable for various wire cross-sections and voltage ratings up to 1000 V, they ensure reliable, secure connections with push-in connection method and high-temperature resistance.
WEIDMULLER 2500610000 Power Connector Terminal Specifications:
- Number of poles: 8
- Pitch: 15 mm (0.591 inch)
- Width: 116.8 mm (4.598 inch)
- Height: 35 mm (1.378 inch)
- Depth: 28.55 mm (1.124 inch)
- Solder pin length: 5 mm, dimensions: d= 1.2 mm, octagonal
- Solder eyelet hole diameter: 17 mm (+0.1 mm tolerance)
- Material: Wemid (PA), black, flame-retardant V0 (UL 94)
- Contact material: Copper (ECu)
- Rated voltage: 1000 V (IEC), 600 V (UL/CSA)
- Rated current: 76 A (IEC), 53 A (UL/CSA)
- Clamping range: 0.5 mm² to 16 mm²
- Wire cross-section AWG: 18-4
- Operating temperature: -40°C to +120°C
- Storage temperature: -40°C to +70°C
- Protection class: IP20 (plugged), IP10 (unplugged)
- Insulation material: Wemid (PA), black
- Sealing: Touch-safe with connected connectors
Buy the Buy Weidmuller Power Series LU Power Connector Part Number 2500610000 Online
Secure your power electronics with the Weidmuller Power Connector Terminal series LU. Featuring 8 poles, 15 mm pitch, and a maximum voltage of 1000 V, it offers high current capacity up to 76 A. Constructed from flame-retardant Wemid (PA), it ensures safety and durability. The push-in connection method allows quick assembly without actuators, ideal for solar inverters, frequency converters, and power supplies. Its IP20 protection and temperature resistance between -40°C and +120°C make it versatile and reliable for industrial applications.
Buy Weidmuller LUFS 15.00/08/90V 5.0SN BK BX now and experience unmatched reliability and high current handling in your power electronics projects.
