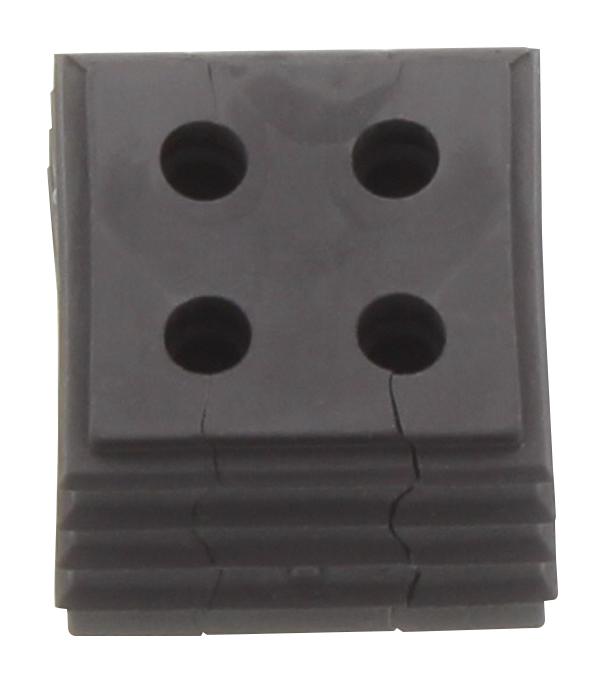

WEIDMULLER 2583570000 Cable Entry Sealing Grommet
This conical-shaped sealing grommet facilitates easy installation by pressing into place from the inside of the frame inlay. It features a slotted design with a wave cut, making it suitable for preassembled cables. Combined with the frame inlay, it achieves an IP66 protection rating, ensuring a high level of environment resistance. Made of halogen-free, silicone-free, and UV-stabilized black TPE, it provides reliable sealing and strain relief. The small 4-hole version accommodates a clamping range of 4mm to 4.5mm and meets UL94 HB flammability standards. Its operational temperature range is between -40°C and +120°C (static conditions).
WEIDMULLER 2583570000 Cable Entry Sealing Grommet Specifications:
- Material: TPE, halogen-free, silicone-free, UV stabilized
- Dimensions: Length 20.7 mm, Width 20.7 mm, Height 17.7 mm, Depth 17.7 mm
- Weight: 6.0679 g
- Outer cable diameter: min 4mm, max 45mm
- Protection rating: IP66, IP54, IP65
- Temperature Range: -40°C to +120°C (static)
- Flammability: UL 94 HB
- Design: Conical-shaped, slotted with wave cut
- Installation: Press-fit from inside the frame inlay
- Compatible for pre-assembled cables
- Sealing capability: Reliable environmental sealing and strain relief
Buy the Weidmueller Se 4/4.5 SML BK – Reliable Cable Entry System for Industrial Applications
Purchase the Weidmueller Se 4/4.5 SML BK cable entry sealing grommet online to ensure secure environmental sealing in industrial applications. Made of durable, halogen-free TPE, it offers excellent resistance to high temperatures from -40°C to +120°C and provides IP66 protection, making it suitable for demanding environments. Its conical, slotted design allows easy installation, and the compact size fits cables of 4 to 4.5mm diameter. Ideal for pre-assembled cables and applications requiring UL94 HB flammability standards, ensuring safety and reliability.
Get Weidmueller Se 4/4.5 SML BK today—built for reliable sealing with high temperature resistance and easy installation for industrial environments.
